مادربرد ایسوس مدل - ASUS AMD ProArt X870E-CREATOR WIFI

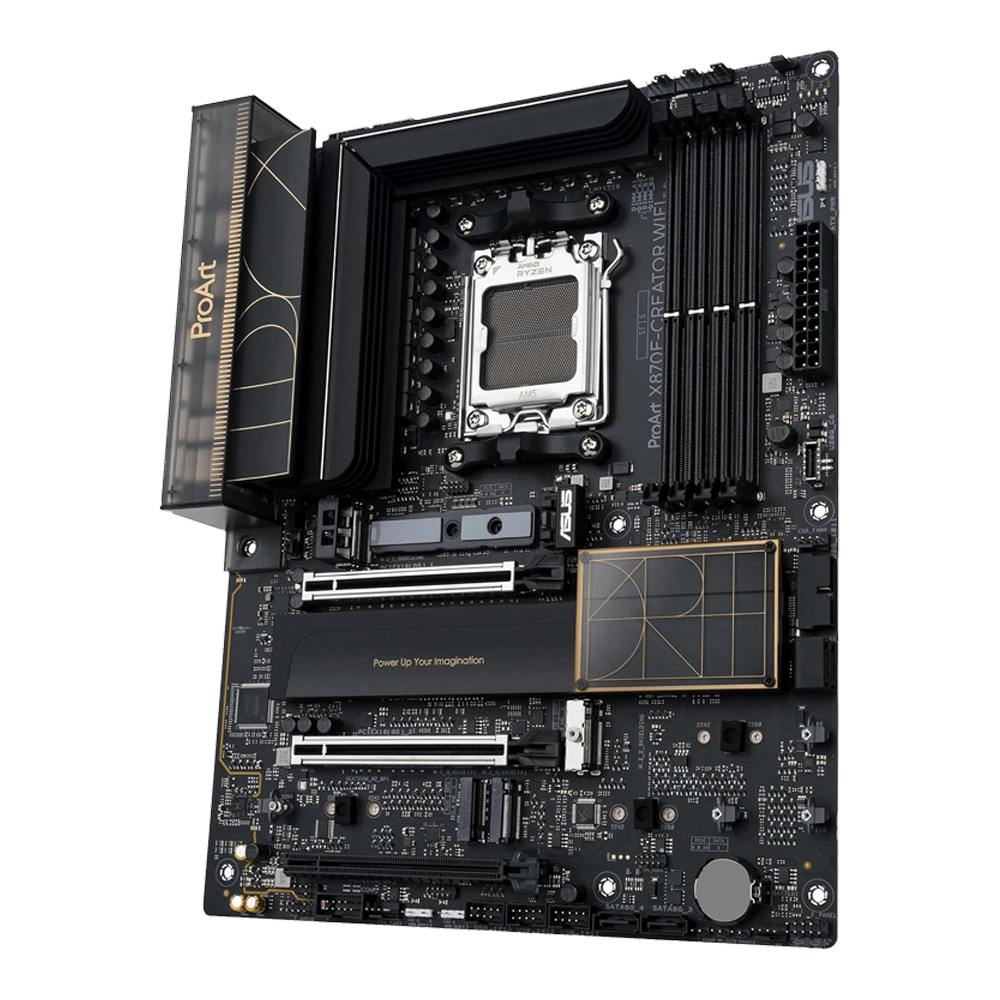

ProArt X870E-CREATOR WIFI

AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*

AMD X870E

4xDIMM slots, max. 192GB, DDR5

8000+MT/s(OC) with Ryzen™ 9000 Series Processors,

8000+MT/s(OC) with Ryzen™ 8000 Series Processors,

8000+MT/s(OC) with Ryzen™ 7000 Series Processors,

ECC and Non-ECC Un-buffered DIMM

Dual Channel Memory Architecture

Supports AMD Extended Profiles for Overclocking
(EXPO™)

ASUS Enhanced Memory Profile (AEMP)

1xHDMITM port- 2xUSB4® (40Gbps) ports support USB Type-C® display outputs

AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors: 2xPCIe 5.0x16 slots (support x16 or x8/x8 modes)-
AMD X870E Chipset: 1xPCIe 4.0x16 slot (supports x4 mode)

Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*
AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
AMD X870E Chipset
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports

1xMarvell® AQtion 10Gb Ethernet
1xIntel® 2.5Gb Ethernet
ASUS LANGuard

Wi-Fi 7
2x2Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band
Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate.
Bluetooth® v5.4

11 پورت

2xUSB4® (40Gbps) port(s) (2 x USB Type-C®)
1xUSB 20Gbps port(s) (1 x USB Type-C®)
7xUSB 10Gbps port(s) (7 x Type-A)
1xUSB 2.0 port (1 x Type-A)

9 پورت

1xUSB 20Gbps connector (supports USB Type-C® with up to 30W PD/QC4+)
1xUSB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports
3xUSB 2.0 headers support 6 additional USB 2.0 ports

Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback

- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
- Unique de-pop circuit

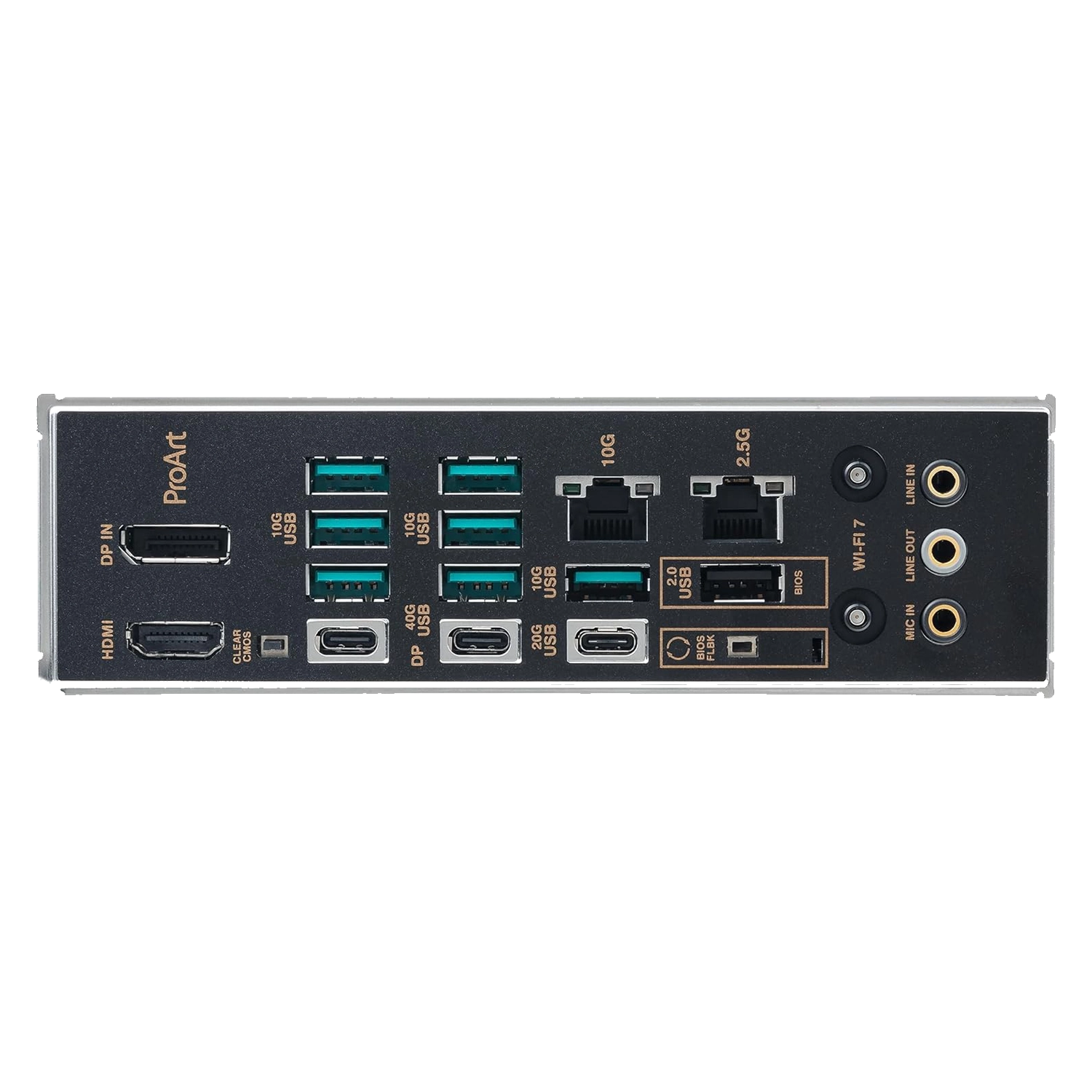

2xUSB4® (40Gbps) port(s) (2xUSB Type-C®)
1xUSB 20Gbps port (1xUSB Type-C®)
7xUSB 10Gbps ports (7xType-A)
1xUSB 2.0 port (1xType-A)
1xDisplayPort (Input only)
1xHDMITM port
1xWi-Fi Module
1xMarvell® AQtion 10Gb Ethernet
1xIntel® 2.5Gb Ethernet
3xAudio jacks
1xBIOS FlashBack™ button
1xClear CMOS button

** Fan and Cooling related(موارد مرتبط با فن و خنک‌کننده)
1x4-pin CPU Fan header 1x4-pin AIO Pump header
5x4-pin Chassis Fan headers
** Power related( موارد مرتبط با برق)
1x24-pin Main Power connector
2x8-pin +12V CPU Power connector
** Storage related (موارد مربوط به حافظه و هارد)
4xM.2 slots (Key M)
4xSATA 6Gb/s ports

1xUSB 20Gbps connector (supports USB Type-C® with up to 30W PD/QC4+)
1xUSB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports
3xUSB 2.0 headers support 6 additional USB 2.0 ports

3xAddressable Gen 2 headers
1xChassis Intrusion header
1xCOM Port header
1xCPU Over Voltage jumper
1xFront Panel Audio header (F_AUDIO)
1x10-1 pin System Panel header
1xThermal Sensor header

** ASUS 5XPROTECTION III
- DIGI+ VRM (- Digital power design)
- Enhanced DRAM Overcurrent Protection
- ESD Guards
- LANGuard
- Overvoltage Protection
- Safeslot
- Stainless-Steel Back I/O
**ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- M.2 Q-Slide
- PCIe Slot Q-Release Slim (with PCIe SafeSlot)
- Q-Antenna
- Q-Connector
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
**ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsinks
- VRM heatsink design ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- ProCool
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
**AURA Sync
- Addressable Gen 2 headers
**Bespoke Motherboard Design & Business Focused Features
- 24/7 Reliability
- Overcurrent Protection
**Front Panel USB 20Gbps with Quick Charge 4+ Support
- Support: up to 30W fast charging and USB Wattage Watcher
- Output: 5V/9V max. 3.0A, 12V max2.5A, 15V max2.0A
- Compatible with PD3.0

***ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4 with AI Cooling II
- Power Saving
ASUS DriverHub
ASUS GlideX
USB Wattage Watcher
TurboV Core
ASUS CPU-Z
ProArt Creator Hub
CreationFirst
Adobe Creative Cloud (Free Trial)
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
***UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
FlexKey

IT Management software supported
- ASUS Control Center Express(ACCE)
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE

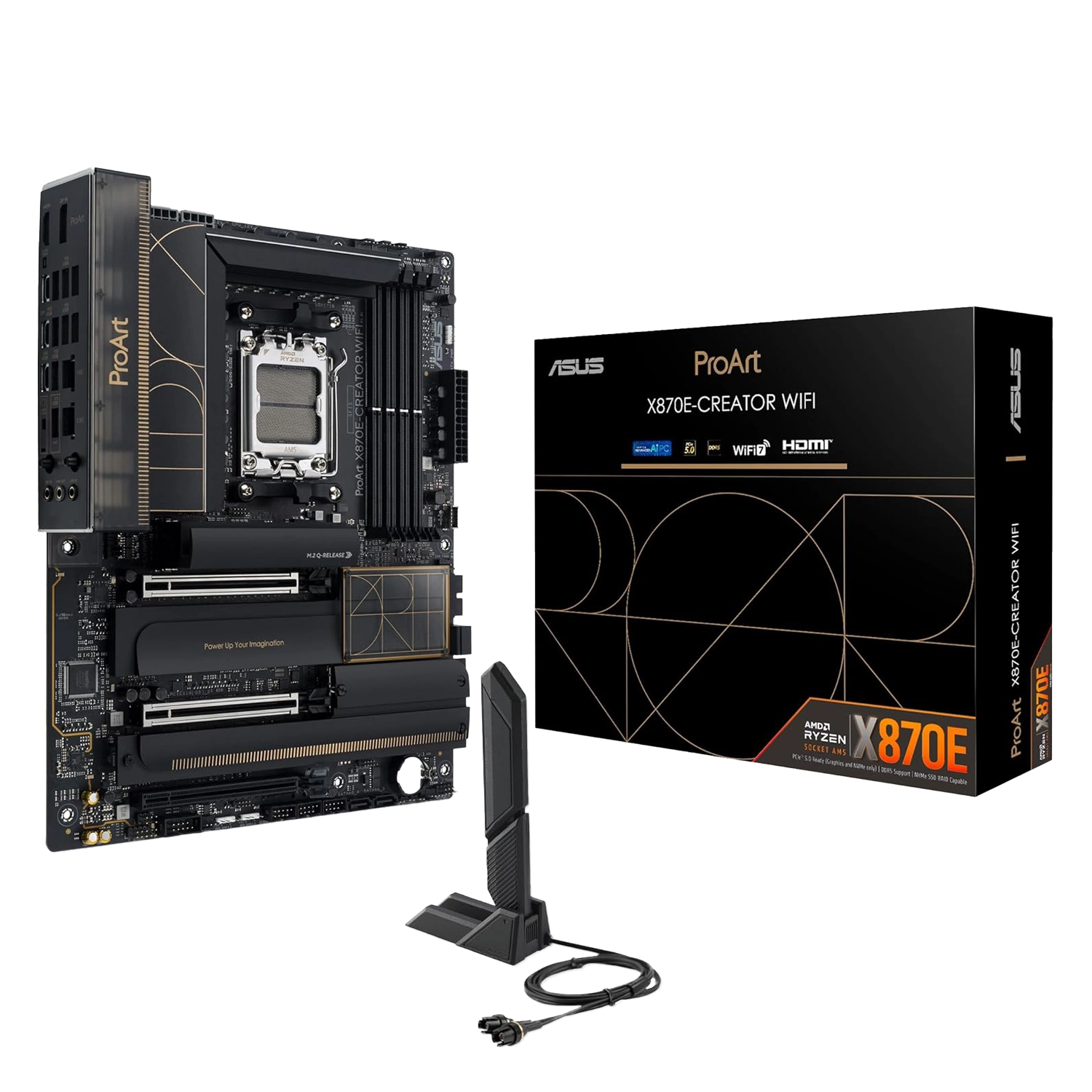

(Cables)
1xDisplayPort cable
4xSATA 6Gb/s cables
(Additional Cooling Kit)
1xThermal pad for M.2 22110
(Miscellaneous)
1xASUS WiFi Q-Antenna
1xQ-connector
1xM.2 Q-Latch package
1xM.2 Q-Latch Q-Slide package for M.2 backplate
2xRubber Packages for M.2
1xProArt ruler
(Documentation)
1xQuick start guide
1xACC Express Activation Key Card

Windows® 11

ATX Form Factor
12inchx9.6inch( 30.5cmx 24.4cm )
