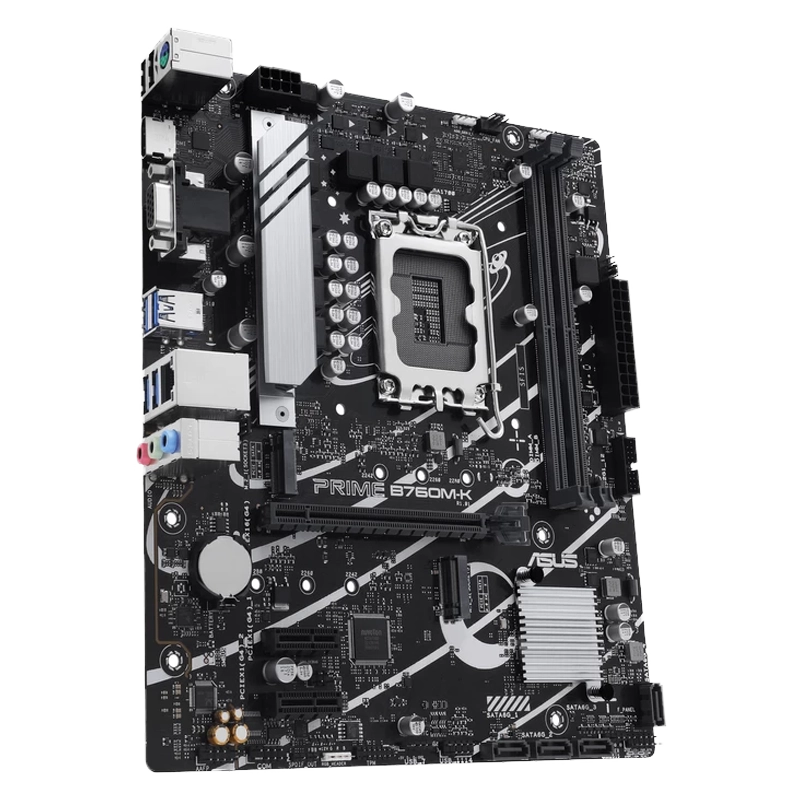

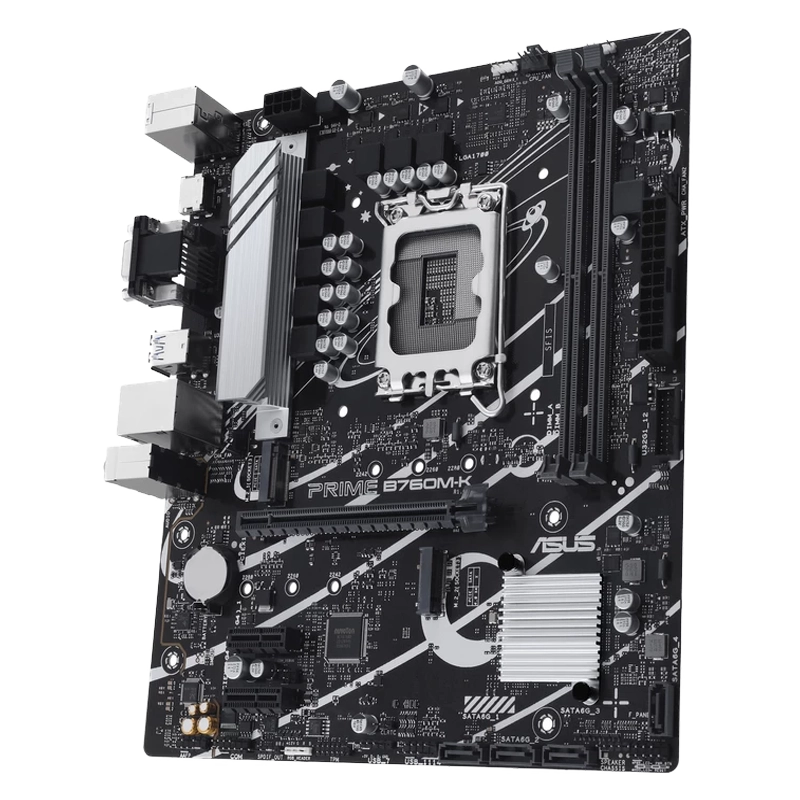

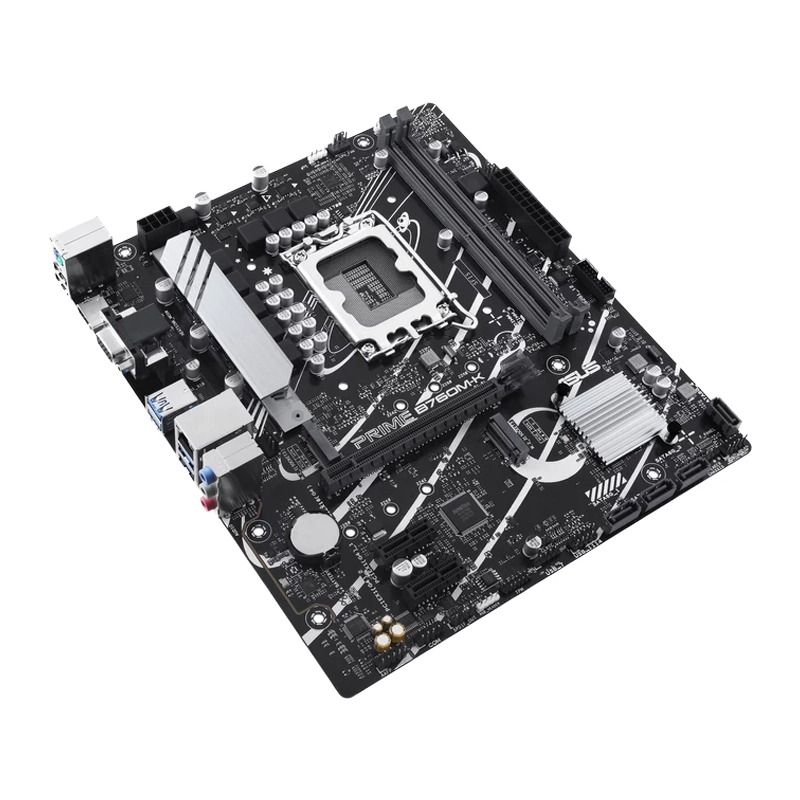

مادربرد ایسوس مدل - ASUS DDR4 b760 mk

Intel® Socket LGA1700 for Intel® CoreTM 14th & 13th Gen Processors, Intel® CoreTM 12th Gen, Pentium® Gold and Celeron® Processors

2xDIMM slots, Max. 96GB, DDR5 8000(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture

1xVGA port
1xHDMITM port

Intel® CoreTM Processors (14th & 13th & 12th Gen) 1 x PCIe 4.0 x16 slot
Intel® B760 Chipset 2 x PCIe 4.0 x1 slots
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

6 پورت

4xUSB 3.2 Gen 1 (5G) ports (4 x Type-A)
2xUSB 2.0 ports (2 x Type-A）

5 عدد

1xUSB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
2xUSB 2.0 headers support 3 additional USB 2.0 ports

Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® CoreTM Processors (14th & 13th & 12th Gen)
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel® B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)4 x SATA 6Gb/s ports

Realtek 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback

- Audio Shielding- Premium audio capacitors- Dedicated audio PCB layers

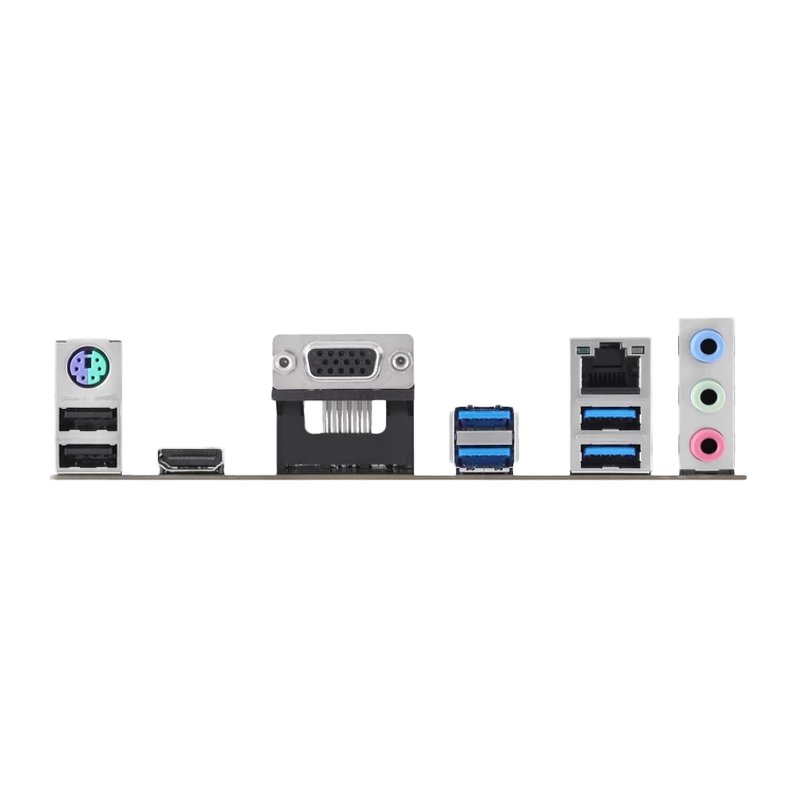

* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. Back Panel I/O Ports4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A)2 x USB 2.0 ports (2 x Type-A)
1xVGA port1 x HDMITM port1 x Realtek 2.5Gb Ethernet port 3xAudio jacks
1xPS/2 Keyboard/Mouse combo port

Fan and Cooling related (موارد مرتبط با فن و خنک‌کننده)
1x4-pin CPU Fan header2x4-pin Chassis Fan headers
Power related ( موارد مرتبط با برق)
1x24-pin Main Power connector1x8-pin +12V Power connector
Storage related (موارد مربوط به حافظه و هارد)
2xM.2 slots (Key M)4xSATA 6Gb/s ports

1xUSB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
2xUSB 2.0 headers support 3 additional USB 2.0 ports

2xAddressable Gen 2 headers
1xAura RGB header 1xClear CMOS header 1xCOM Port header
1xFront Panel Audio header (AAFP)1xS/PDIF Out header
1xSpeaker header 1xSPI TPM header (14-1pin) 1x10-1 pin System Panel header

**ASUS 5X PROTECTION III
- DIGI+ VRM- LANGuard- Overvoltage Protection- SafeSlot Core- Stainless-Steel Back I/O
**ASUS Q-Design- Q-DIMM- Q-LED Core- Q-Slot
**ASUS EZ DIY- ProCool
**ASUS Thermal Solution- VRM heatsink design
**Aura Sync- Aura RGB header- Addressable Gen 2 headers

Windows® 11, Windows® 10 64-bit

** Cables 2xSATA 6Gb/s cables
** Miscellaneous 1xI/O Shield 2xM.2 anchors
** Documentation 1xUser guide

mATX Form Factor 9.6 inchx8.3 inch (24.4cmx21.1cm)
