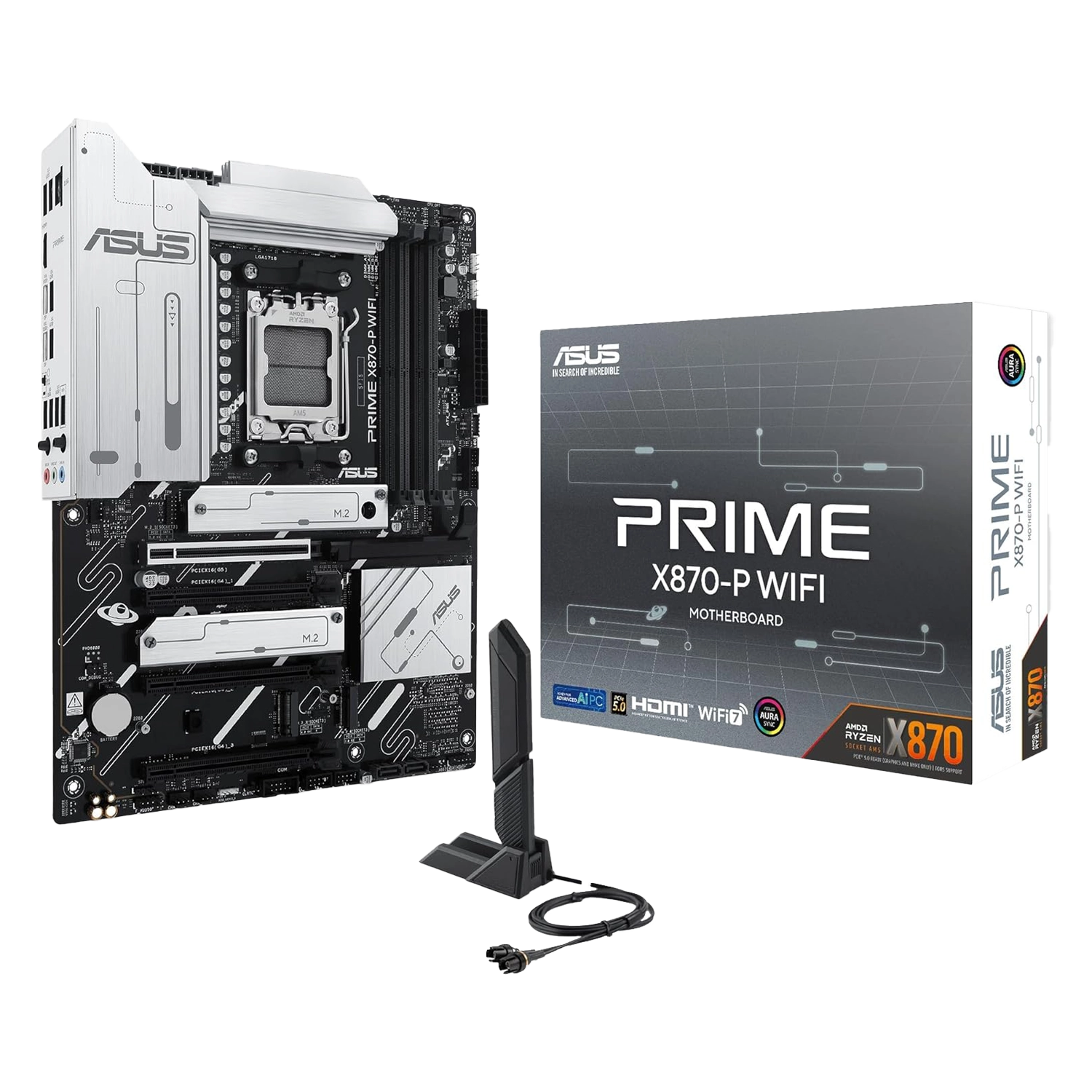

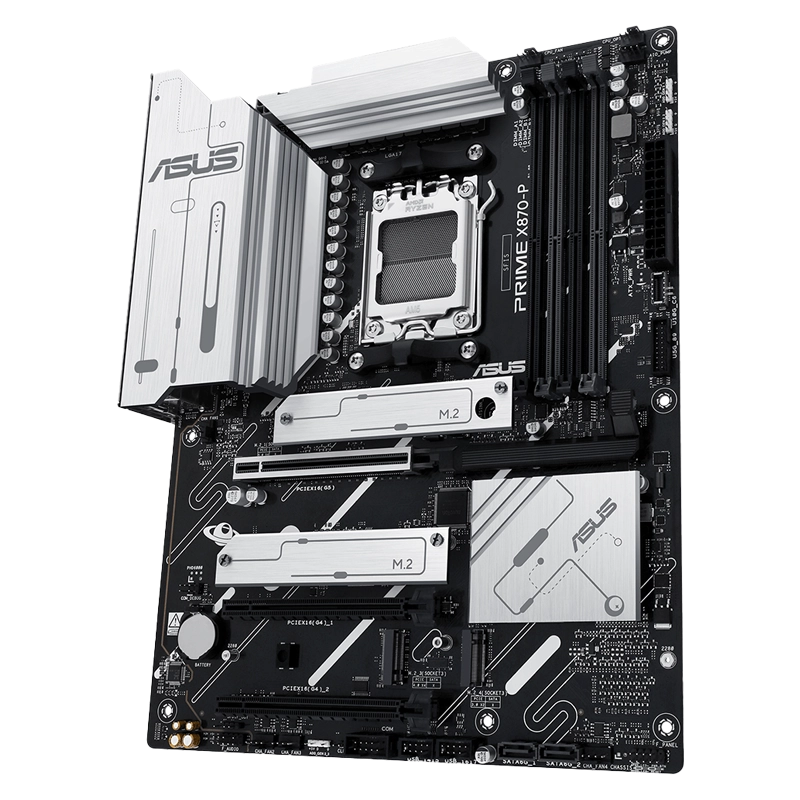

مادربرد ایسوس مدل - ASUS AMD x870 p

PRIME X870-P-CSM

AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors

AM- X870

4xDIMM slots, max. 192GB, DDR5
Supports up to 8000+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors
ECC and Non-ECC, Un-buffered DIMM
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
ASUS Enhanced Memory Profile (AEMP)

1xHDMI™ port
2xUSB4® (40Gbps) ports support USB Type-C® display outputs

AMD Ryzen™ 9000 & 7000 Series Desktop Processors
1xPCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen™ 8000 Series Desktop Processors
1xPCIe 4.0 x16 slot (supports x8/x4 mode)
AMD X870 Chipset
2xPCIe 4.0 x16 slots (support x1 mode)

Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
AMD X870E Chipset
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports

1xRealtek 2.5Gb Ethernet
ASUS LANGuard

12 عدد

2xUSB4® (40Gbps) ports (2xUSB Type-C®)
1xUSB 10Gbps port (1xType-A)
3xUSB 5Gbps ports (3xType-A)
4xUSB 2.0 ports (4xType-A)

7 عدد

1xUSB 10Gbps connector (supports USB Type-C®)
1xUSB 5Gbps header supports 2 additional USB 5Gbps ports
2xUSB 2.0 headers support 4 additional USB 2.0 ports

Realtek 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback

- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers

2xUSB4® (40Gbps) ports (2xUSB Type-C®)
1xUSB 10Gbps port (1xType-A)
3xUSB 5Gbps ports (3xType-A)
4xUSB 2.0 ports (4xType-A)
1xHDMI™ port
1xRealtek 2.5Gb Ethernet port
3xAudio jacks
1xBIOS FlashBack™ button

Fan and Cooling Related (موارد مرتبط با فن و خنک‌کننده)
1x4-pin CPU Fan header
1x4-pin CPU OPT Fan header
1x4-pin AIO Pump header
4x4-pin Chassis Fan headers
Power Related (موارد مرتبط با برق)
1x24-pin Main Power connector
2x8-pin +12V CPU Power connectors
Storage Related (موارد مربوط به حافظه و هارد)
4xM.2 slots (Key M)
2xSATA 6Gb/s ports

1xUSB 10Gbps connector (supports USB Type-C®)
1xUSB 5Gbps header supports 2 additional USB 5Gbps ports
2xUSB 2.0 headers support 4 additional USB 2.0 ports

3xAddressable Gen 2 headers
1xClear CMOS header
1xCOM Port header
1xFront Panel Audio header (F_AUDIO)
1xS/PDIF Out header
1xSPI TPM header (14-1 pin)
1x10-1 pin System Panel header

(ASUS 5X PROTECTION III)
- DIGI+ VRM (- Digital power design with DrMOS)
- LANGuard
- Overvoltage protection
- SafeSlot
- Stainless-steel back I/O
(ASUS Q-Design)
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-Dashboard
- Q-DIMM
- Q-LED Core
- Q-Slot
(ASUS Thermal Solution)
- Flexible M.2 heatsink
- VRM heatsink design
(ASUS EZ DIY0)
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- ProCool
- Pre-mounted I/O shield
- SafeSlot
(Aura Sync)
- Addressable Gen 2 headers

(ASUS Exclusive Software)
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- Power Saving
ASUS DriverHub
TurboV Core
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
(UEFI BIOS)
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
Remote Management Features
IT Management software supported
- ASUS Control Center Express(ACCE)
(BIOS0)
256 Mb Flash ROM, UEFI AMI BIOS
(Manageability)
WOL by PME, PXE

1xM.2 rubber package
2xScrew packages for M.2 SSD

Windows 11, Windows 10 64-bit

ATX Form Factor
12inchx9.6inch ( 30.5 cmx24.4 cm )
