مادربرد ایسوس مدل - ASUS DDR4 z790 a rog

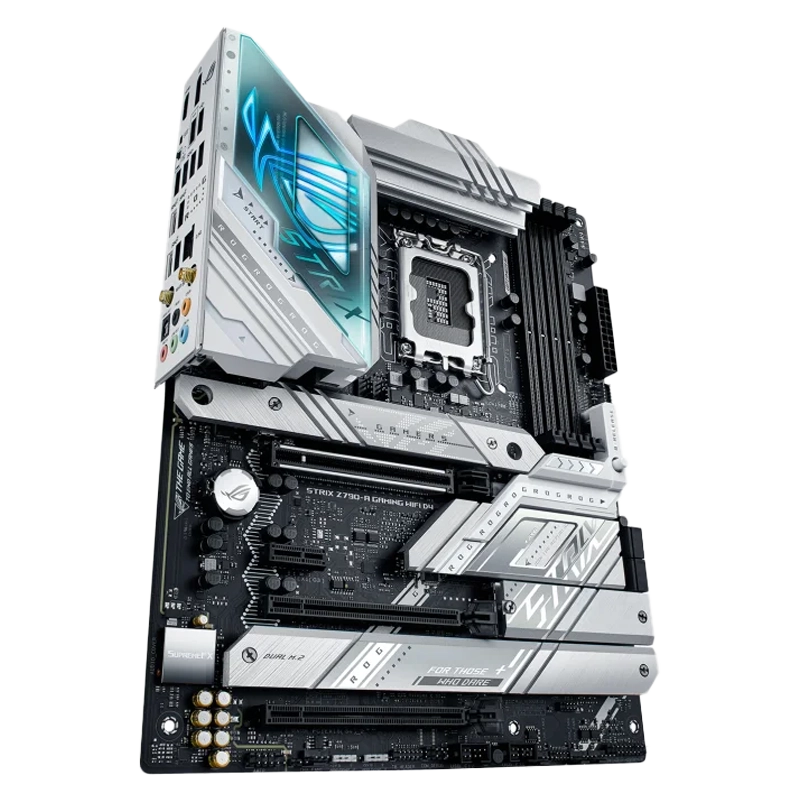

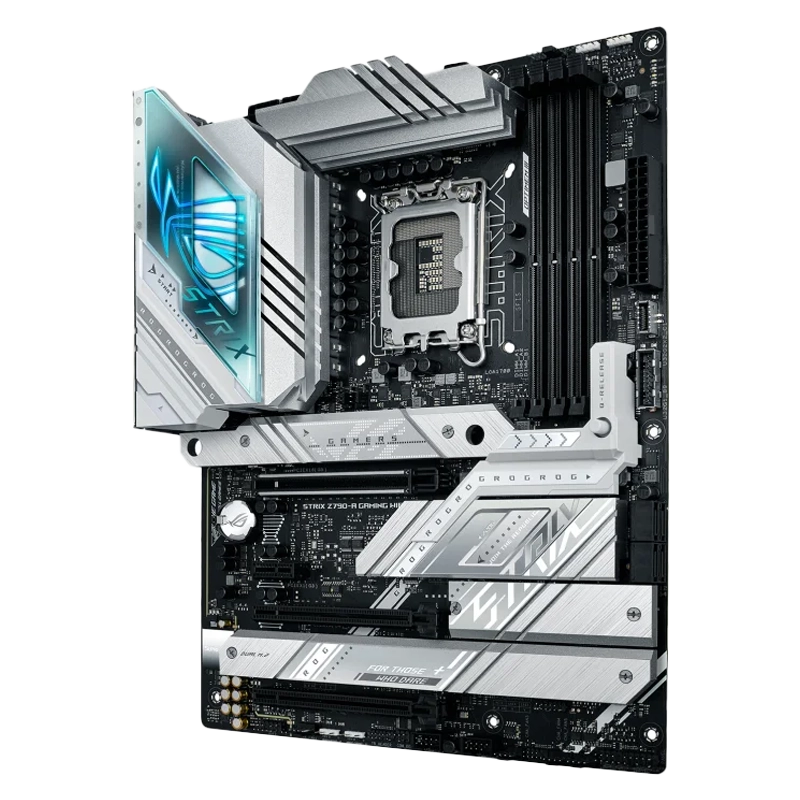

ROG STRIX Z790-A GAMING WIFI D4

Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors

Intel®-Z790 Chipset

4xDIMM, Max. 128GB, DDR4 DDR4
5333(OC)/5133(OC)/5066(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133
Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem III

1xDisplayPort
1xHDMI® port

Intel® Core™ Processors (14th & 13th & 12th Gen)
1xPCIe 5.0 x16 slot

Intel® Z790 Chipset
2xPCIe 4.0 x16 slots (support x4/x4 mode)
1xPCIe 3.0 x1 slot

Total supports 4xM.2 slots and 4xSATA 6Gb/s ports*

Intel® Core™ Processors (14th & 13th & 12th Gen)
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

Intel® Z790 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
4xSATA 6Gb/s ports

1xIntel® 2.5Gb Ethernet
ASUS LANGuard

Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band
Bluetooth® v5.3

10 عدد

1xUSB 3.2 Gen 2x2 port (1xUSB Type-C®)
3xUSB 3.2 Gen 2 ports (2xType-A + 1xUSB Type-C®)
4xUSB 3.2 Gen 1 ports (4xType-A)
2xUSB 2.0 ports (2xType-A)

7 عدد

1xUSB 3.2 Gen 2x2 connector (supports USB Type-C® with up to 30W PD)
1xUSB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2xUSB 2.0 headers supports 4 additional USB 2.0 ports

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback

- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover

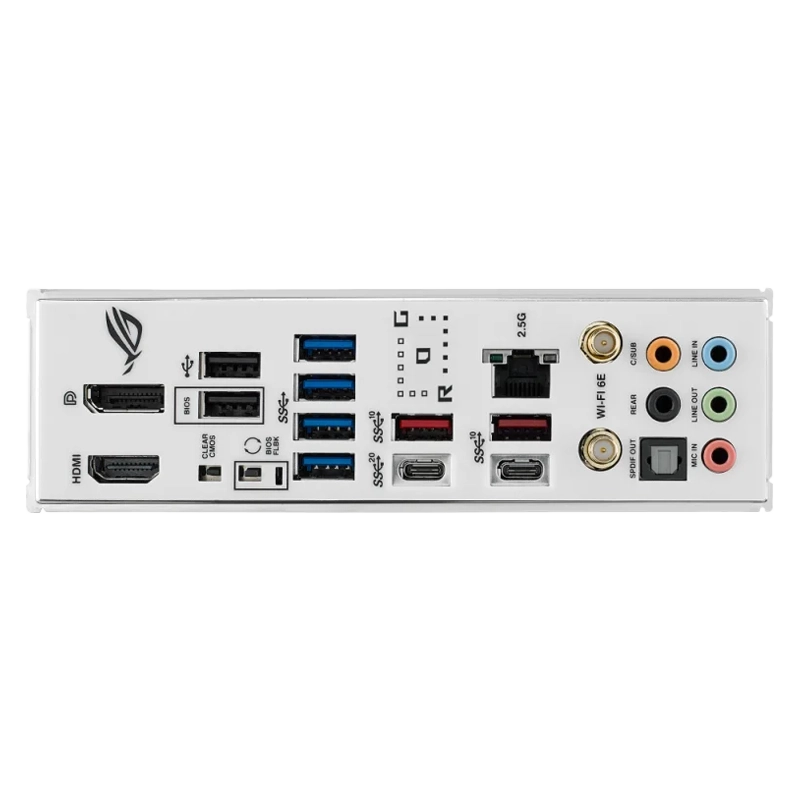

1xUSB 3.2 Gen 2x2 port (1xUSB Type-C®)
3xUSB 3.2 Gen 2 ports (2xType-A, 1xUSB Type-C®)
4xUSB 3.2 Gen 1 ports (4xType-A)
2xUSB 2.0 ports (2xType-A)
1xDisplayPort
1xHDMI® port
1xWi-Fi Module
1xIntel® 2.5Gb Ethernet port
5xAudio jacks
1xOptical S/PDIF out port
1xBIOS FlashBack™ button
1xClear CMOS button

Fan and Cooling related (موارد مرتبط با فن و خنک‌کننده)
1x4-pin CPU Fan header
1x4-pin CPU OPT Fan header
1x4-pin AIO Pump header
5x4-pin Chassis Fan headers

Power related (موارد مرتبط با برق)
1x24-pin Main Power connector
2x8-pin +12V Power connectors

Storage related (موارد مربوط به حافظه وهارد)
4xM.2 slots (Key M)
4xSATA 6Gb/s ports

1xUSB 3.2 Gen 2x2 connector (supports USB Type-C® )
1xUSB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2xUSB 2.0 headers support 4 additional USB 2.0 ports

3xAddressable Gen 2 headers
1xAura RGB header
1xCPU Over Voltage jumper
1xFront Panel Audio header (AAFP)
1x20-3 pin System Panel header with Chassis intrude function
1xThermal Sensor header
1xThunderbolt™ header

**Extreme Engine Digi+
- 5K Black Metallic Capacitors

**ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot

**ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
- VRM heatsink design

**ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- Clear CMOS button
- CPU Socket lever protector
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM

**Aura Sync
- Aura RGB header
- Addressable Gen 2 headers

**Front Panel USB 3.2 Gen 2x2 with PD Fast-charge Support
- Support: up to 30W charging
- Output: 5/9V max. 3A, 12V max. 2.5A
- Compatible with PD3.0

ROG Exclusive Software
- GameFirst VI
- ROG CPU-Z
- Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
- Sonic Radar III
- DTS® Sound Unbound

ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme (60 days free trial)
- Aura Creator- Aura Sync
- Fan Xpert 4 (with AI Cooling II)*
- Power Saving
- Two-Way AI Noise Cancellation
AI Suite 3
- Easy Optimization with AI Overclocking
- TPU
- DIGI+ VRM
- Turbo app
- PC Cleaner
MyAsus
Norton 360 for Gamers
WinRAR

UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
FlexKey
MemTest86

BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE

Cables
2xSATA 6Gb/s cables

Additional Cooling Kit
1xThermal pad for M.2

Miscellaneous
1xASUS Wi-Fi moving antennas
1xCable ties package
1xM.2 backplate Q-Latch package
1xM.2 Q-Latch package
1xROG key chain
1xROG Strix stickers
1xROG Strix thank you card
2xM.2 Rubber Packages
1xM.2 backplate Rubber

PackageDocumentation
1xUser guide

Windows® 11, Windows® 10 64-bit

ATX Form Factor
12 inchx9.6 inch ( 30.5 cmx24.4 cm )
