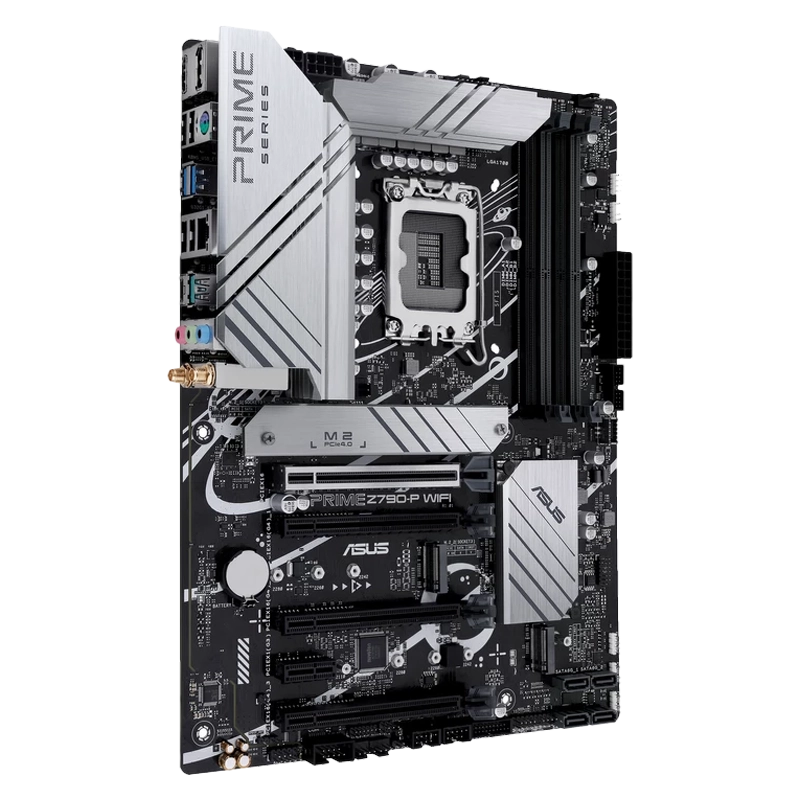

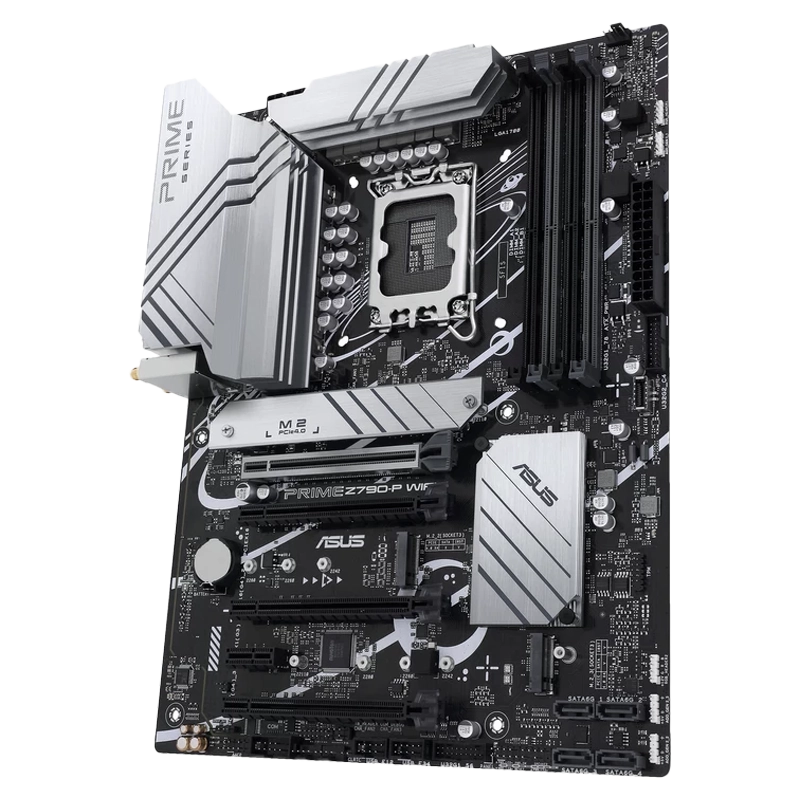

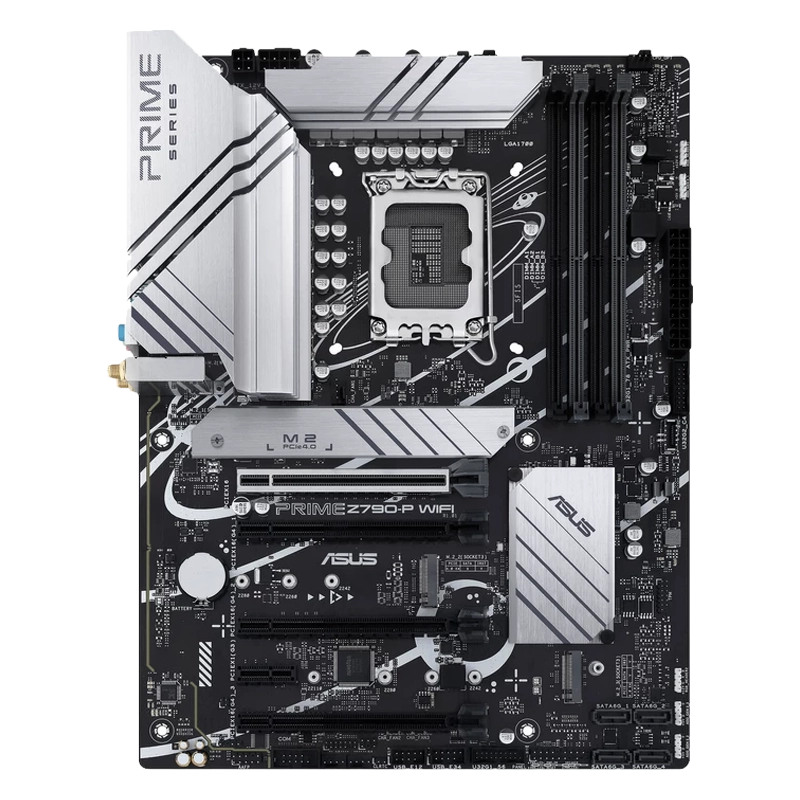

مادربرد ایسوس مدل - ASUS DDR4 z790 p wifi

PRIME Z790-P WIFI D4

Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors

4xDIMM, Max. 128GB, DDR4 5333(OC)/5133(OC)/5066(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture

OptiMem II

1xDisplayPort
1xHDMI® port

Intel® Core™ Processors (14th & 13th & 12th Gen)* 1xPCIe 5.0 x16 slot
Intel® Z790 Chipset 3xPCIe 4.0 x16 slots (support x4 mode) 1xPCIe 3.0 x1 slot

Total supports 3xM.2 slots and 4xSATA 6Gb/s ports*
Intel® Core™ Processors (14th & 13th & 12th Gen)
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
Intel® Z790 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
4xSATA 6Gb/s ports

Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)Supports 2.4/5GHz frequency bandBluetooth® v5.2

8 عدد

1xUSB 3.2 Gen 2x2 port (1xUSB Type-C®)
1xUSB 3.2 Gen 2 port (1xType-A)
2xUSB 3.2 Gen 1 ports (2xType-A)
4xUSB 2.0 ports (4xType-A)

9 عدد

1xUSB 3.2 Gen 2 connector (supports USB Type-C®)
2xUSB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
2xUSB 2.0 headers support 4 additional USB 2.0 ports

Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback

- Audio Shielding- Premium audio capacitors- Dedicated audio PCB layers

1xUSB 3.2 Gen 2x2 port (1xUSB Type-C®)
1xUSB 3.2 Gen 2 port (1xType-A)2xUSB 3.2 Gen 1 ports (2xType-A)
4xUSB 2.0 ports (4xType-A)1xDisplayPort1xHDMI® port1xWi-Fi Module
1xRealtek 2.5Gb Ethernet port3xAudio jacks1xPS/2 Keyboard/Mouse combo port

Fan and Cooling related (موارد مرتبط با فن و خنک‌کننده)
1x4-pin CPU Fan header
1x4-pin CPU OPT Fan header
1x4-pin AIO Pump header
3x4-pin Chassis Fan headers
Power related (موارد مرتبط با برق)
1x24-pin Main Power connector
1x8-pin +12V Power connector
1x4-pin +12V Power connector
Storage related (موارد مربوط به حافظه وهارد)
3xM.2 slots (Key M)
4xSATA 6Gb/s ports

1xUSB 3.2 Gen 2 connector (supports USB Type-C®)
2xUSB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
2xUSB 2.0 headers support 4 additional USB 2.0 ports

3xAddressable Gen 2 headers
1xAura RGB header
1xClear CMOS header
1xCOM Port header
1xFront Panel Audio header (AAFP)
1xS/PDIF Out header
1xSPI TPM header (14-1pin)
1x20-5pin System Panel header
1xThunderbolt™ (USB4®) Header
