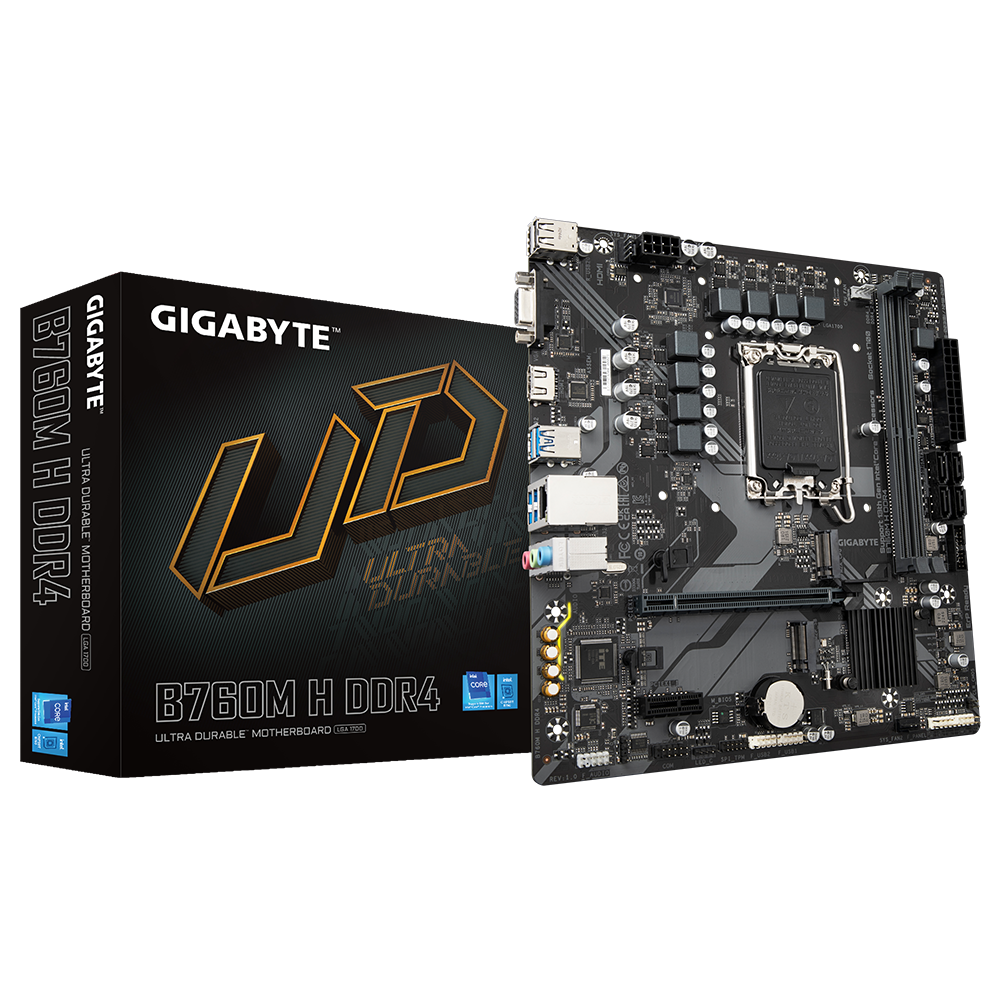

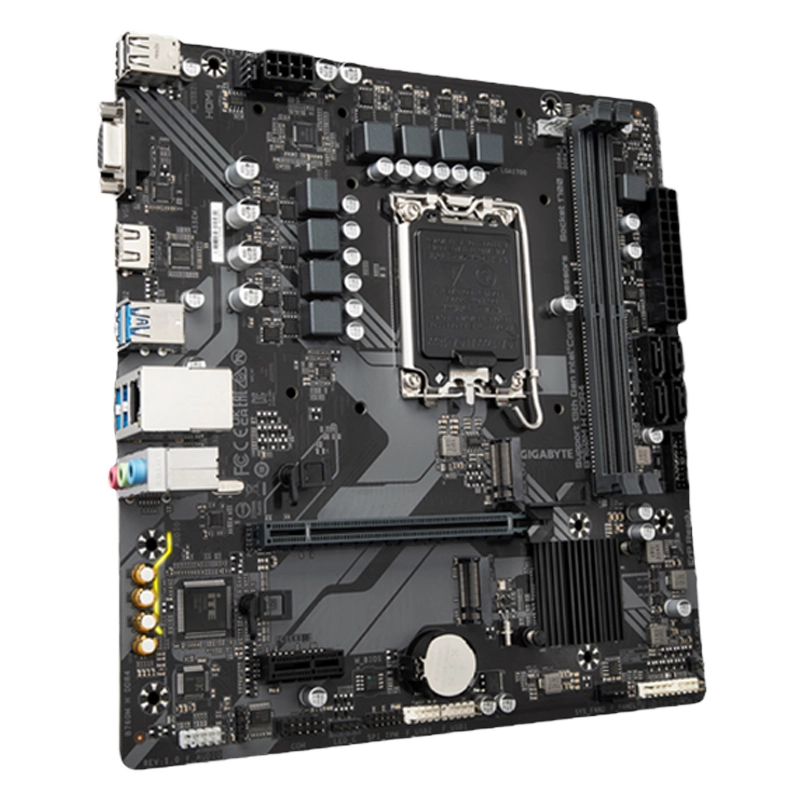

مادربرد گیگابایت مدل - GIGABYTE DDR4 b760 mh

MB B760 MH DDR4

LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors

Intel®-B760 Express Chipset

Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules
2xDDR4 DIMM sockets supporting up to 64GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules

Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel

CPU:
- 1xPCI Express x16 slot, supporting PCIe 4.0 and running at x16

* The PCIEX16 slot can only support a graphics card or an NVMe SSD.

Chipset:
- 1xPCI Express x1 slot, supporting PCIe 3.0 and running at x1

CPU:
- 1xM.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
- 1xM.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
- 4xSATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

Chipset:
- 6xUSB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
- 6xUSB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

1x24-pin ATX main power connector
1x8-pin ATX 12V power connector
1xCPU fan header
2xsystem fan headers
1xRGB LED strip header
2xM.2 Socket 3 connectors
4xSATA 6Gb/s connectors
1xfront panel header
1xfront panel audio header
1xS/PDIF Out header
1xUSB 3.2 Gen 1 header
2xUSB 2.0/1.1 headers
1xTrusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1xserial port header
1xClear CMOS jumper

Support for Windows 11 64-bit
Support for Windows 10 64-bit

Micro ATX Form Factor; 23.0cmx21.5cm

2xUSB 2.0/1.1 ports
1xD-Sub port
1xHDMI port
4xUSB 3.2 Gen 1 ports
1xRJ-45 port
3xaudio jacks

Integrated Graphics Processor-Intel® HD Graphics support:
- 1xD-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
- 1xHDMI port, supporting a maximum resolution of 4096x2160@60 Hz

Norton® Internet Security (OEM version)
LAN bandwidth management software
