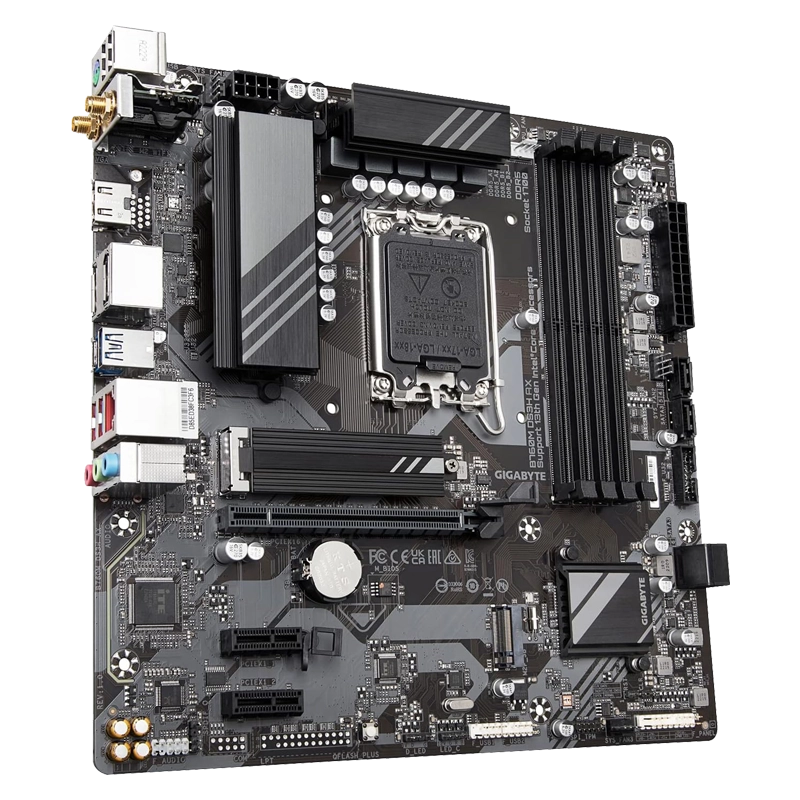

مادربرد گیگابایت مدل - GIGABYTE DDR5 b760 me

B760M E (rev. 1.0)

LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors

Intel ® B760 Express Chipset

Support for DDR5 7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules

- 1xD-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
- 1xDisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
- 1xHDMI port, supporting a maximum resolution of 4096x2160@60 Hz

Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel

Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

CPU:
- 1xPCI Express x16 slot, supporting PCIe 4.0 and running at x16
Chipset:
- 1xPCI Express x1 slot, supporting PCIe 3.0 and running at x1

CPU:
- 1xM.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2A_CPU)
Chipset:
- 1xM.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2P_SB)
- 4xSATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

- 6xUSB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
- 6xUSB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

1x24-pin ATX main power connector
1x8-pin ATX 12V power connector
1xCPU fan header
2xsystem fan headers
1xRGB LED strip header
2xM.2 Socket 3 connectors
4xSATA 6Gb/s connectors
1xfront panel header
1xfront panel audio header
1xS/PDIF Out header
1xUSB 3.2 Gen 1 header
2xUSB 2.0/1.1 headers
1xTrusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1xserial port header
1xClear CMOS jumper

2xUSB 2.0/1.1 ports
1xD-Sub port
1xDisplayPort
1xHDMI port
4xUSB 3.2 Gen 1 ports
1xRJ-45 port
3xaudio jacks

• I/O Controller
iTE® I/O Controller Chip
• H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control

* Whether the fan speed control function is supported will depend on the fan you install.
• BIOS
1x128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Support for GIGABYTE Control Center (GCC)

Norton® Internet Security (OEM version)
LAN bandwidth management software

Support for Windows 11 64-bit
Support for Windows 10 64-bit

Micro ATX Form Factor; 23.0cmx21.5cm
