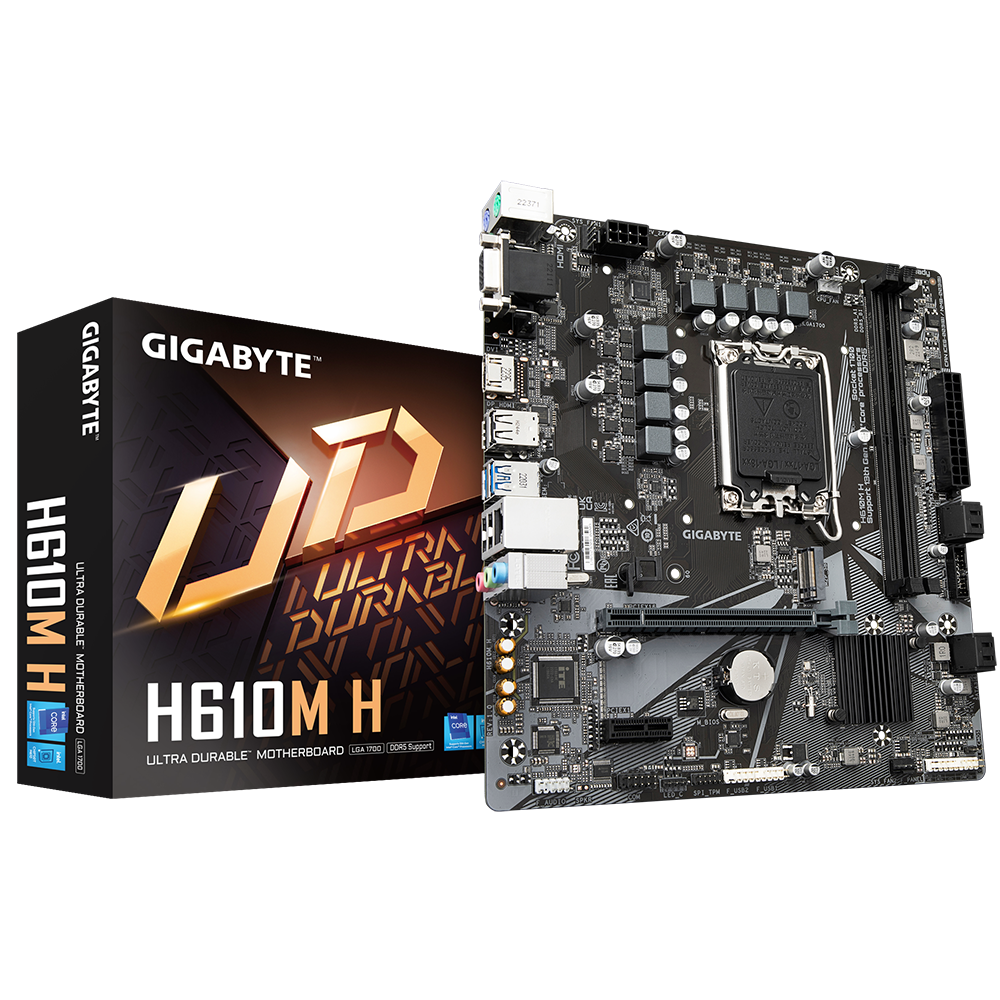

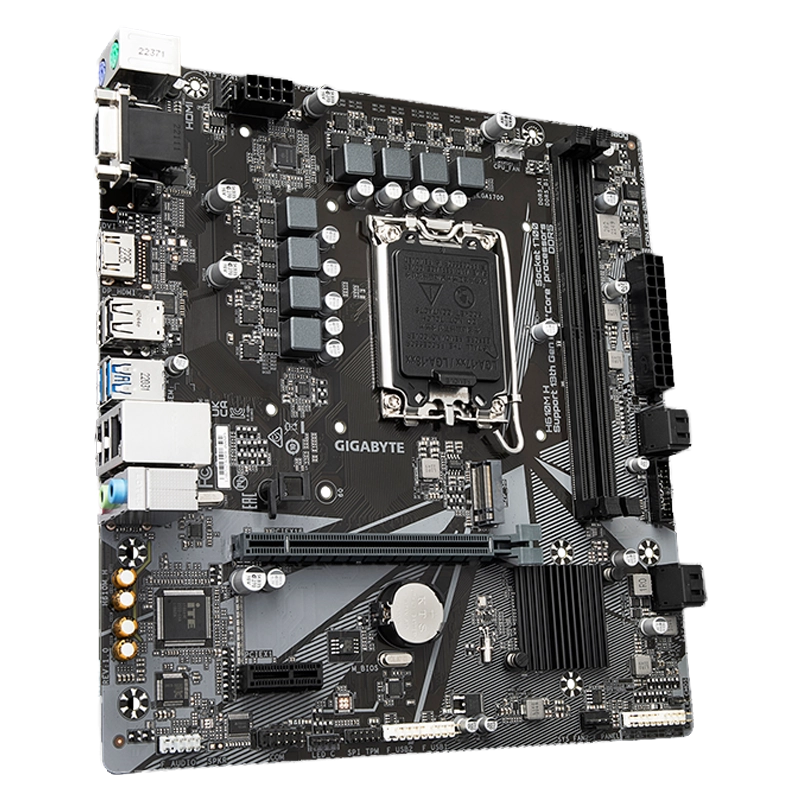

مادربرد گیگابایت مدل - GIGABYTE DDR5 h610 mh d5

MB H610 MH DDR5

LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors

Intel® H610 Express Chipset

13th Generation Intel® Core™ i9/i7 processors:
Support for DDR5 5600/5200/4800/4400 MT/s memory modules
13th Generation Intel® Core™ i5/i3 and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors:
Support for DDR5 4800/4400 MT/s memory modules
2xDDR DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules

1xD-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1xHDMI port, supporting a maximum resolution of 4096x2160@60 Hz

Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel

Realtek® GbE LAN chip (1 Gbps/100 Mbps)

CPU:
1xPCI Express x16 slot, supporting PCIe 4.0 and running at x16
Chipset:
1xPCI Express x1 slot, supporting PCIe 3.0 and running at x1

Chipset:
1xM.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support)
4xSATA 6Gb/s connectors

Chipset:
4xUSB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
4xUSB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
4xUSB 2.0/1.1 ports available through the internal USB headers

1x24-pin ATX main power connector
1x8-pin ATX 12V power connector
1xCPU fan header
2xsystem fan headers
1xM.2 Socket 3 connector
4xSATA 6Gb/s connectors
1xRGB LED strip header
1xfront panel header
1xfront panel audio header
1xUSB 3.2 Gen 1 header
2xUSB 2.0/1.1 headers
1xTrusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1xserial port header
1xClear CMOS jumper
Back Panel Connectors
1xPS/2 keyboard port
1xPS/2 mouse port
1xD-Sub port
1xHDMI port
2xUSB 3.2 Gen 1 ports
4xUSB 2.0/1.1 ports
1xRJ-45 port
3xaudio jacks

I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
1x128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Support for APP Center
@BIOS
Ambient LED
EasyTune
Smart Backup
System Information Viewer
Support for Q-Flash
Support for Xpress Install

Norton® Internet Security (OEM version)
LAN bandwidth management software

Support for Windows 11 64-bit
Support for Windows 10 64-bit

Micro ATX Form Factor; 23.0cmx21.5cm
