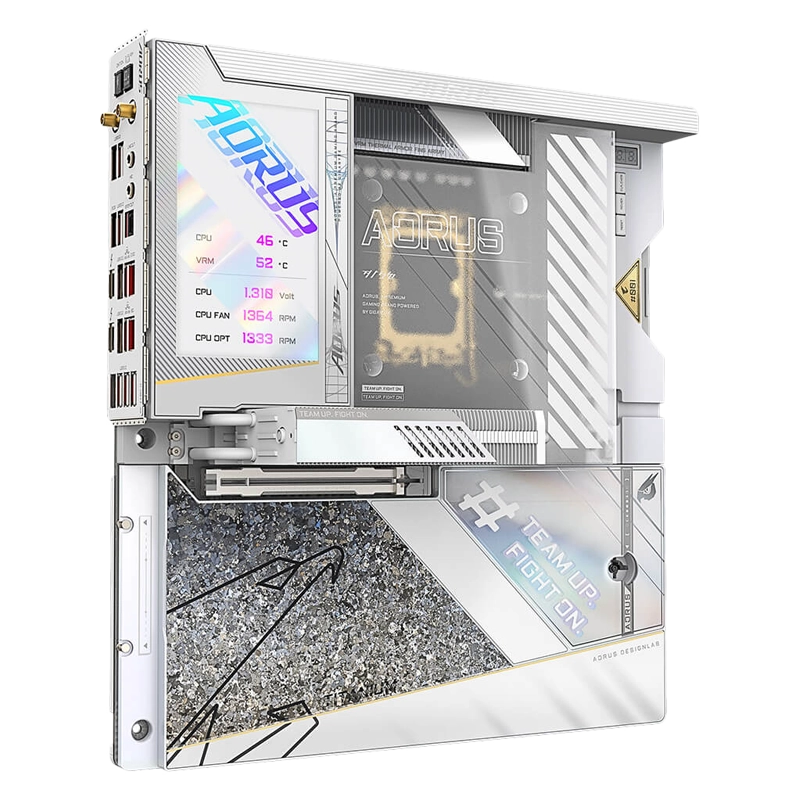

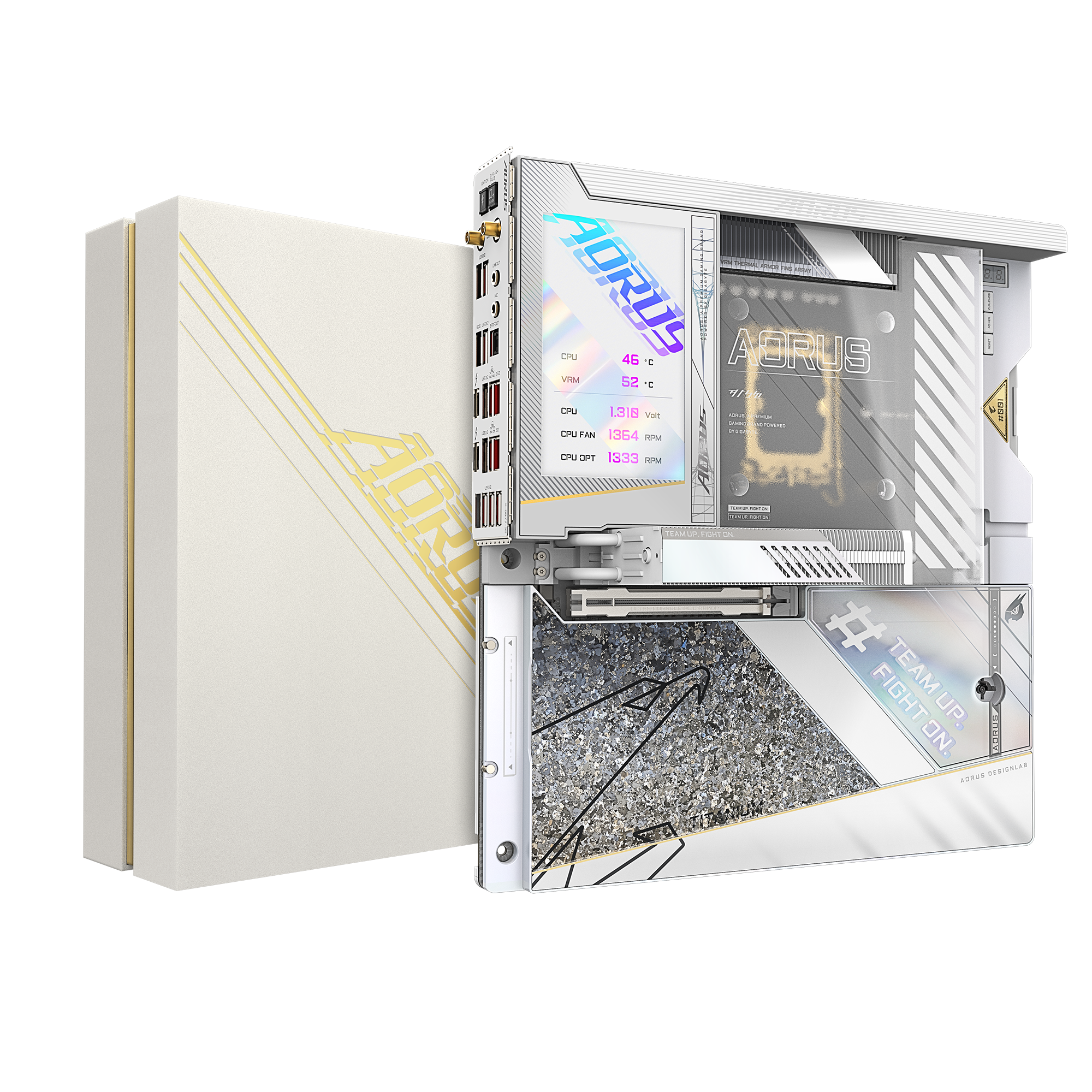

مادربرد گیگابایت مدل - GIGABYTE DDR5 Z790 AORUS XTREME X ICe

LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors

Intel® Z790 Express Chipset

Support for DDR5 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
4xDDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules

Integrated Graphics Processor+Intel® Thunderbolt™ 4 Controller:
2xIntel® Thunderbolt™ 4 connectors (USB Type-C® ports), supporting DisplayPort and Thunderbolt™ video outputs and a maximum resolution of 5120x2880@60 Hz with 24 bpp (via single display output)

1 ESS ES9280AC DAC chip + 2 ESS ES9080 chips
DTS® Sound Unbound™
High Definition Audio
2-channel

Marvell® AQtion AQC107 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) (LAN1)
Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) (LAN2)

Intel® Wi-Fi 7 BE200
802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11be 320MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)

Note:
Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10)
Wi-Fi 7 channels on 6GHz band availability depends on individual country's regulations.

CPU:
1xPCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* The PCIEX16 slot shares bandwidth with the M2C_CPU connector. The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2C_CPU connector.
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
1xPCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)

CPU:
1xM.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support) (M2C_CPU)
1xM.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
2xM.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB)
1xM.2 connector (Socket 3, M key, type 2280/2260 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
4xSATA 6Gb/s connectors
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices

Chipset+Intel® Thunderbolt™ 4 Controller:
2xUSB Type-C® ports on the back panel, with USB 3.2 Gen 2 support
Chipset:
2xUSB Type-C® ports with USB 3.2 Gen 2x2 support, available through the internal USB header
2xUSB 3.2 Gen 2 Type-A ports (red) on the back panel
Chipset+2 USB 3.2 Gen 2 Hubs:
8xUSB 3.2 Gen 2 Type-A ports (red) on the back panel
Chipset+USB 3.2 Gen 1 Hub:
4xUSB 3.2 Gen 1 ports available through the internal USB headers
Chipset+2 USB 2.0 Hubs:
4xUSB 2.0/1.1 ports available through the internal USB headers

1x24-pin ATX main power connector
2x8-pin ATX 12V power connectors
1xCPU fan header
1xCPU fan/water cooling pump header
1xsystem fan header
1xsystem fan extension cable header (can extend three system fan headers through one cable)
1xsystem fan/water cooling pump extension cable header (can extend three system fan/water cooling pump headers through one cable)
1xnoise detection header
1xintegrated extension cable header for addressable RGB Gen2 LED strips and RGB LED strips (can extend three addressable RGB Gen2 LED strip headers and three RGB LED strip headers through one cable)
4xSATA 6Gb/s connectors
5xM.2 Socket 3 connectors
1xfront panel header
2xUSB Type-C® headers, with USB 3.2 Gen 2x2 support
2xUSB 3.2 Gen 1 headers
1xintegrated extension cable header for system fan/water cooling pump and USB 2.0/1.1 headers (can extend one system fan/water cooling pump header and two USB 2.0/1.1 headers through one cable)
2xtemperature sensor headers
1xpower button
1xreset button
1xClear CMOS button

1xQ-Flash Plus button
1xOC Ignition button
2xSMA antenna connectors (2T2R)
2xThunderbolt™ 4 connectors (USB Type-C® ports, with USB 3.2 Gen 2 support)
10xUSB 3.2 Gen 2 Type-A ports (red)
2xRJ-45 ports
1xoptical S/PDIF Out connector
2xaudio jacks

I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
Noise detection
BIOS
1x256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup

Norton® Internet Security (OEM version)
LAN bandwidth management software

Support for Windows 11 64-bit

E-ATX Form Factor; 30.5cmx28.5cm

Z790 D (rev. 1.0)

LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors

Intel® Z790 Express Chipset

14th and 13th Generation Intel® Core™ i9/i7 Pocessors:
- Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600 / 5400 / 5200/ 4800/4400 MT/s memory modules
13th Generation Intel® Core™ i5/i3 and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors:
- Support for DDR5 4800/4400 MT/s memory modules
4xDDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)

- 1xHDMI port, supporting a maximum resolution of 4096x2160@60 Hz
- 1xDisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

CPU:
- 1xPCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
Chipset:
- 1xPCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
- 1xPCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4)
- 2xPCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3)

CPU:
- 1xM.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
- 1xM.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
- 1xM.2 connectors (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
- 4xSATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

Chipset:
- 1xUSB Type-C® port on the back panel, with USB 3.2 Gen 2 support
- 1xUSB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
- 1xUSB 3.2 Gen 2 Type-A port (red) on the back panel
- 6xUSB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
- 2xUSB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
- 4xUSB 2.0/1.1 ports, available through the internal USB headers

1x24-pin ATX main power connector
2x8-pin ATX 12V power connectors
1xCPU fan header
1xCPU fan/water cooling pump header
3xsystem fan headers
1xsystem fan/water cooling pump header
2xaddressable LED strip headers
3xM.2 Socket 3 connectors
4xSATA 6Gb/s connectors
1xfront panel header
1xfront panel audio header
1xS/PDIF Out header
1xUSB Type-C® header, with USB 3.2 Gen 1 support
1xUSB 3.2 Gen 1 header
2xUSB 2.0/1.1 headers
2xThunderbolt™ add-in card connectors
1xTrusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1xreset button
1xQ-Flash Plus button
1xreset jumper
1xClear CMOS jumper

1xPS/2 keyboard/mouse port
1xUSB Type-C® port, with USB 3.2 Gen 2 support
1xUSB 3.2 Gen 2 Type-A port (red)
4xUSB 3.2 Gen 1 ports
2xUSB 2.0/1.1 ports
1xHDMI port
1xDisplayPort
1xRJ-45 port
3xaudio jacks

I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
BIOS
1x256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup

Norton® Internet Security (OEM version)
LAN bandwidth management software

Support for Windows 11 64-bit
Support for Windows 10 64-bit

ATX Form Factor; 30.5cmx24.4cm
