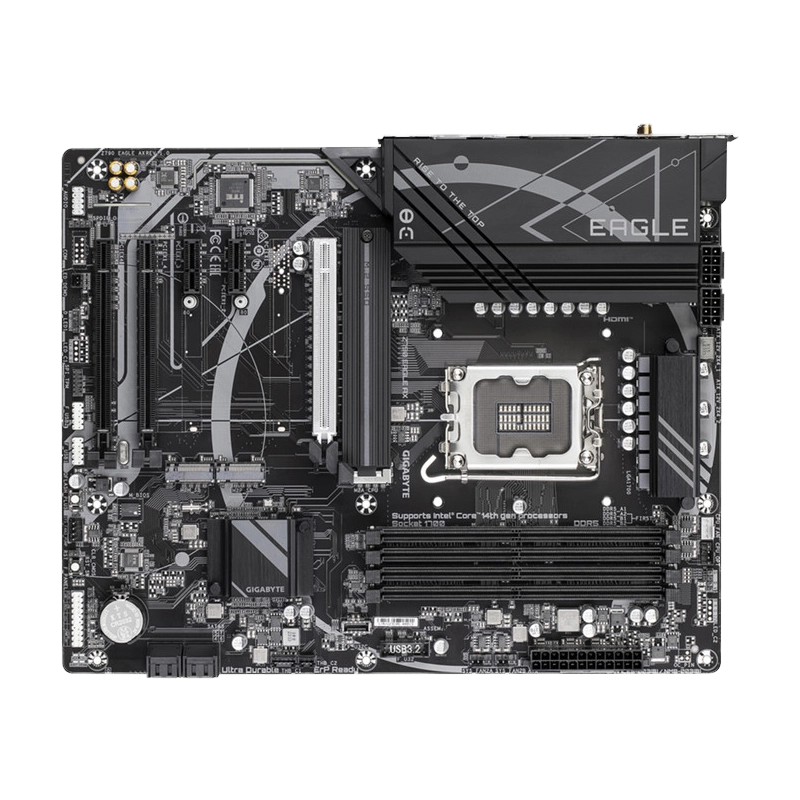

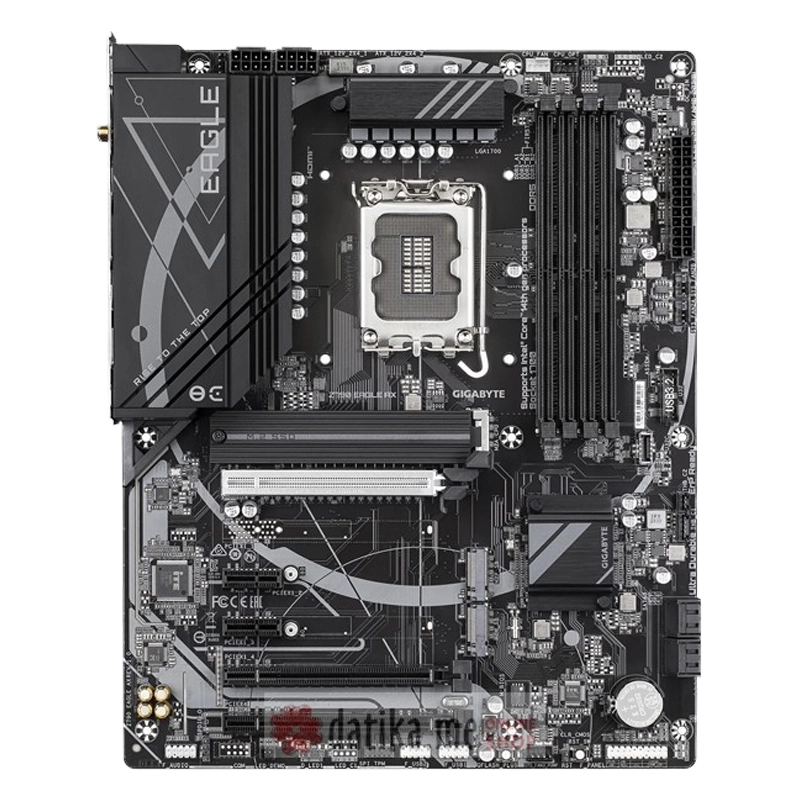

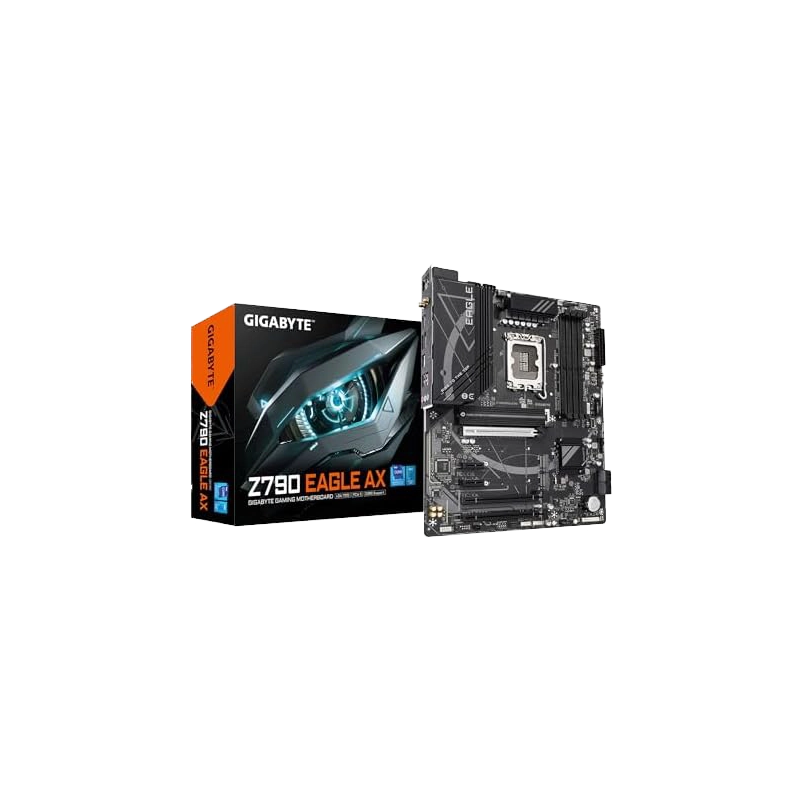

مادربرد گیگابایت مدل - GIGABYTE DDR5 Z790 EAGLE AX (rev. 1.x)

Z790 EAGLE AX (rev. 1.x)

LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors

Intel® Z790 Express Chipset

14th and 13th Generation Intel® Core™ i9/i7 Pocessors:
- Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600 / 5400 / 5200/ 4800/4400 MT/s memory modules

13th Generation Intel® Core™ i5/i3 and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors:
- Support for DDR5 4800/4400 MT/s memory modules

4xDDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)

Integrated Graphics Processor-Intel® HD Graphics support:
- 1xHDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Support for HDMI 2.1 version and HDCP 2.3.
- 1xDisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
Support for DisplayPort 1.2 version and HDCP 2.3

Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Intel® Wi-Fi 6E AX211 (PCB rev. 1.0)
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 160MHz wireless standard
Realtek® Wi-Fi 6E RTL8852CE(PCB rev. 1.1)
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 160MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)

CPU:
- 1xPCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
- 1xPCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
- 1xPCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4)
- 2xPCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3)

CPU:
- 1xM.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
- 1xM.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
- 1xM.2 connectors (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
- 4xSATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

Chipset:
- 1xUSB Type-C® port on the back panel, with USB 3.2 Gen 2 support
- 1xUSB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
- 1xUSB 3.2 Gen 2 Type-A port (red) on the back panel
- 6xUSB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
- 2xUSB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
- 4xUSB 2.0/1.1 ports, available through the internal USB headers

1x24-pin ATX main power connector
2x8-pin ATX 12V power connectors
1xCPU fan header
1xCPU fan/water cooling pump header
3xsystem fan headers
1xsystem fan/water cooling pump header
2xaddressable LED strip headers
3xM.2 Socket 3 connectors
4xSATA 6Gb/s connectors
1xfront panel header
1xfront panel audio header
1xS/PDIF Out header
1xUSB Type-C® header, with USB 3.2 Gen 1 support
1xUSB 3.2 Gen 1 header
2xUSB 2.0/1.1 headers
2xThunderbolt™ add-in card connectors
1xTrusted Platform Module header (For the GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1xreset button
1xQ-Flash Plus button
1xreset jumper
1xClear CMOS jumper

1xPS/2 keyboard/mouse port
1xUSB Type-C® port, with USB 3.2 Gen 2 support
1xUSB 3.2 Gen 2 Type-A port (red)
4xUSB 3.2 Gen 1 ports
2xUSB 2.0/1.1 ports
2xSMA antenna connectors (1T1R)
1xHDMI port
1xDisplayPort
1xRJ-45 port
3xaudio jacks

I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control

Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS
1x256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Support for GIGABYTE Control Center (GCC)
Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup

Norton® Internet Security (OEM version)
LAN bandwidth management software

Support for Windows 11 64-bit
Support for Windows 10 64-bit

ATX Form Factor; 30.5cmx24.4cm
