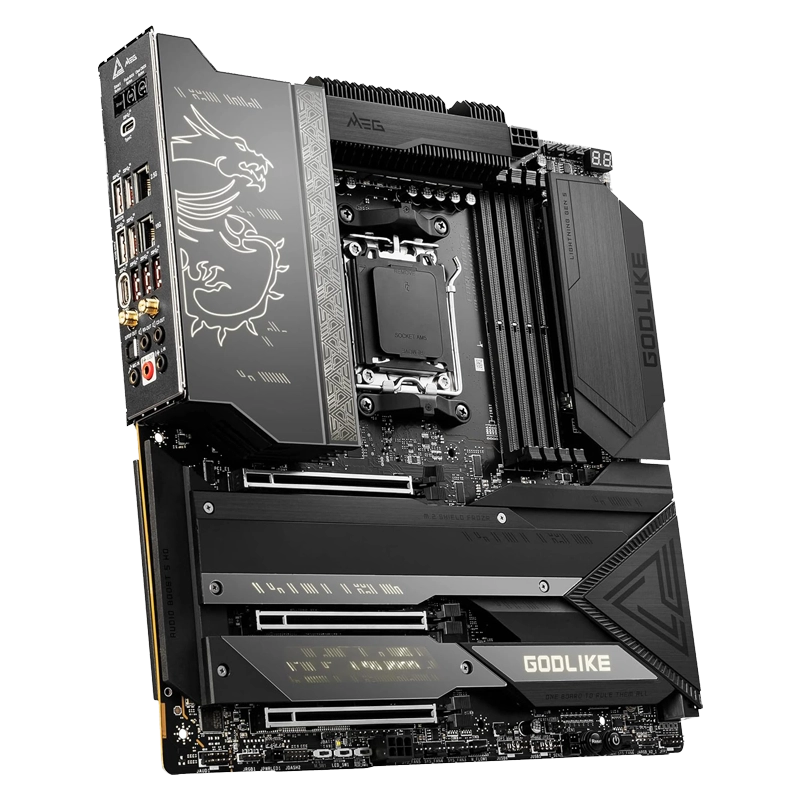

مادربرد ام اس آی مدل - MSI AMD X670

AMD X670

Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5

4x DDR5, Maximum Memory Capacity 256GB
Memory Support DDR5 8000+(OC)/ 7800(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
1DPC 1R Max speed up to 8000+ MHz
1DPC 2R Max speed up to 6400+ MHz
2DPC 1R Max speed up to 6400+ MHz
2DPC 2R Max speed up to 5400+ MHz

Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPO
Slot 3x PCI-E x16 slot
Supports x16/x0/x4 or x8/x8/x4 (For Ryzen™ 9000 and 7000 Series processors)
Supports x8/x0/x4 (For Ryzen™ 7 8700G and Ryzen™ 5 8600G processors)
Supports x4/x0/x2 (For Ryzen™ 5 8500G processor)
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU)
PCI_E3 Gen PCIe 5.0 supports up to x4 (From CPU)

This rear USB 3.2 Gen 2x2 20Gbps Type-C port and PCI_E3 slot share the same bandwidth. When installing a device in the PCI_E3 slot, the port would be unavailable by default. You can go to BIOS > Setting > Advanced > PCIe/PCI Subsystem Setting > PCI_E3/Rear USB-C 20 Switch to select the available device.

Realtek® ALC4082 Codec + ESS ES9280AQ Combo DAC/HPA
7.1-Channel USB High Performance Audio
Supports S/PDIF output
Supports up to 32-Bit/384 kHz playback on front panel

4x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
8x SATA 6G
Multi-GPU AMD MULTI-GPU Support
RAID Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices*
Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices
SATA_A1_A2, SATA_B1_B2 and SATA_B3_B4 do not support RAID function.

2x USB 20Gbps Type C (Rear)
7x USB 10Gbps Type A (Rear)

4x USB 2.0 (Front)
4x USB 2.0 ports (Front)
4x USB 5Gbps Type A (Front)
1x USB 10Gbps Type C (Front)
1x USB 20Gbps Type C (Front)

Marvell® AQC113CS-B1-C 10Gbps LAN
Intel® I225V 2.5Gbps LAN

1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 4pin or 6 pin)
1x Front Type-C Quick Charge Connector(PD_PWR1)
1x CPU Fan
2x Pump Fan
6x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Water Flow connector
1x Front Audio (JAUD)
2x Thermal Sensor connectors(T_SEN)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
V-check point

4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports
1x USB 20Gbps Type C ports

AMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.3**

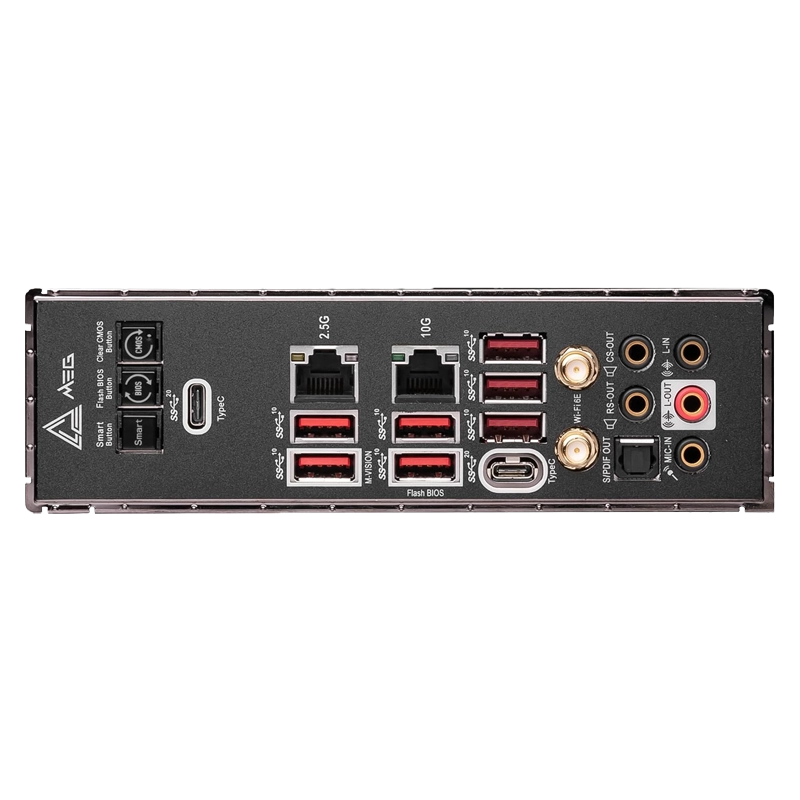

Clear CMOS Button
Flash BIOS Button
2.5G LAN
10G Super LAN
USB 3.2 Gen 2 10Gbps (Type-A)
Wi-Fi / Bluetooth
HD Audio Connectors
Smart Button
USB 3.2 Gen 2x2 20Gbps (Type-C)
USB 3.2 Gen 2 10Gbps (Type-A)
USB 3.2 Gen 2 10Gbps (Type-A)
USB 3.2 Gen 2x2 20Gbps (Type-C)
Optical S/PDIF-Out

Support for Windows® 11 64-bit, Windows® 10 64-bit
