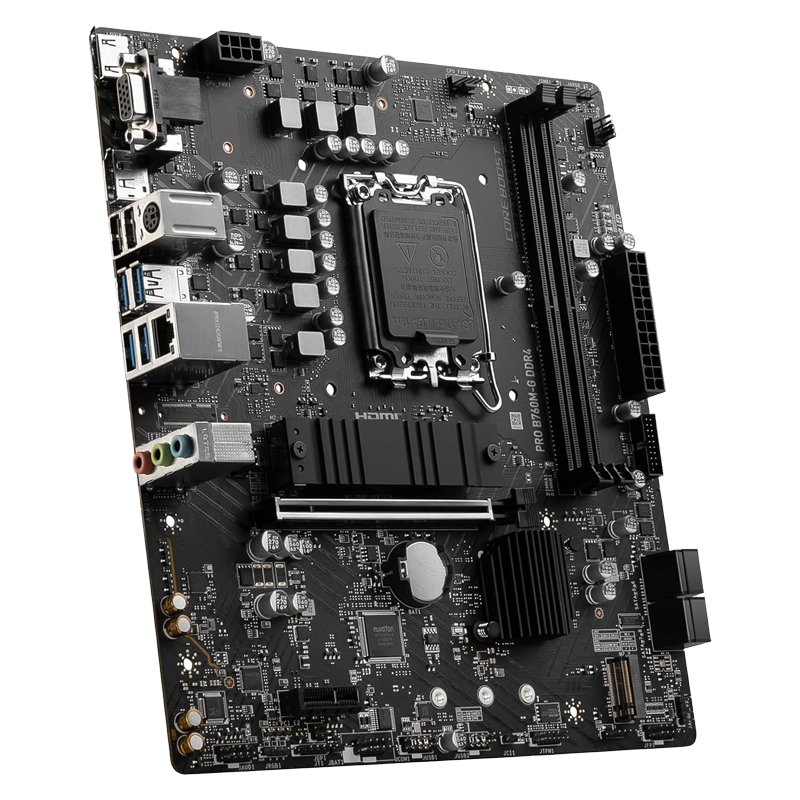

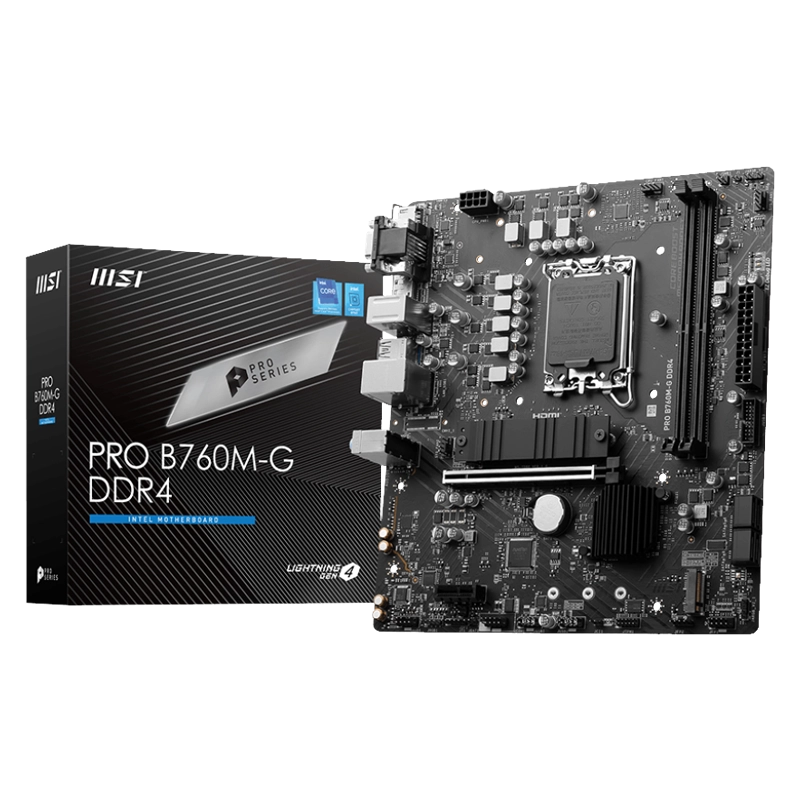

مادربرد ام اس آی مدل - MSI PRO B760M-G DDR4

PRO B760M-G DDR4

Chipset INTEL B760

Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
LGA 1700

2xDDR4, Maximum Memory Capacity 64GB
Memory Support 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC)
Max. overclocking frequency:
• 1DPC 1R Maxspeed up to 4800+ MHz
• 1DPC 2R Maxspeed up to 4600+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)

1xHDMI™
Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz*
1xDisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz*
1xVGA
Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz

1xPCI-E x16 slot
1xPCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to (From Chipset)

Realtek® ALC897 Codec
7.1-Channel High Definition Audio

2xM.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4xSATA 6G
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

4 عدد

2xUSB 2.0 (Rear)
4xUSB 5Gbps Type A (Rear)

6 عدد

4xUSB 2.0 (Front)
2xUSB 5Gbps Type A (Front)

Realtek® RTL8125B 2.5Gbps LAN

1xPower Connector(ATX_PWR)
1xPower Connector(CPU_PWR)
1xCPU Fan
2xSystem Fan
2xFront Panel (JFP)
1xChassis Intrusion (JCI)
1xFront Audio (JAUD)
1xCom Port (JCOM)
2xAddressable V2 RGB LED connector (JARGB_V2)
1xRGB LED connector(JRGB)
1xTPM pin header(Support TPM 2.0)

4xUSB 2.0 ports
2xUSB 5Gbps Type A ports

LED FEATURE 4xEZ Debug LED



HDMI™
VGA
DisplayPort
Keyboard / Mouse
2.5G LAN
Audio Connectors
USB 2.0
USB 3.2 Gen 1 5Gbps (Type-A)

Support for Windows® 11 64-bit, Windows® 10 64-bit
