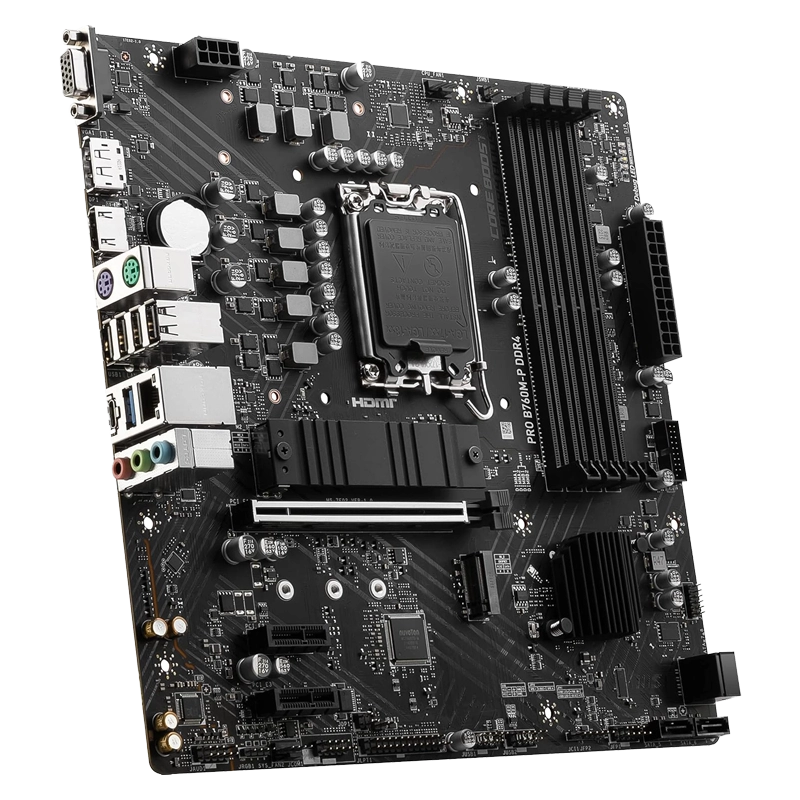

مادربرد ام اس آی مدل - MSI PRO B760M-P DDR4

INTEL B760 M P

Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
LGA 1700

4xDDR4, Maximum Memory Capacity 128GB
Memory Support 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC)
Max. overclocking frequency:
• 1DPC 1R Maxspeed up to 4800+ MHz
• 1DPC 2R Maxspeed up to 4600+ MHz
• 2DPC 1R Maxspeed up to 4400+ MHz
• 2DPC 2R Maxspeed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)

1xHDMI™
Support HDMI™ 1.4, maximum resolution of 4K 30Hz*
1xDisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz*
1xVGA
Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz

1xPCI-E x16 slot
2xPCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset)

Realtek® ALC897 Codec
7.1-Channel High Definition Audio

2xM.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4xSATA 6G
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

6 عدد

4xUSB 2.0 (Rear)
1xUSB 5Gbps Type A (Rear)

7 عدد

1xUSB 10Gbps Type C (Rear)
2xUSB 5Gbps Type A (Front)
4xUSB 2.0 (Front)

Realtek® RTL8111H Gigabit LAN

1xPower Connector(ATX_PWR)
1xPower Connector(CPU_PWR)
1xCPU Fan
2xSystem Fan
2xFront Panel (JFP)
1xChassis Intrusion (JCI)
1xFront Audio (JAUD)
1xPrinter Port (JLPT)
1xCom Port (JCOM)
1xRGB LED connector(JRGB)
1xTPM pin header(Support TPM 2.0)

4xUSB 2.0 ports
2xUSB 5Gbps Type A ports

LED FEATURE 4xEZ Debug LED
VGA
DisplayPort
HDMI™
Keyboard / Mouse
USB 2.0
LAN port
USB 3.2 Gen 1 5Gbps (Type-A)
USB 3.2 Gen 2 10Gbps (Type-C)

Support for Windows® 11 64-bit, Windows® 10 64-bit
