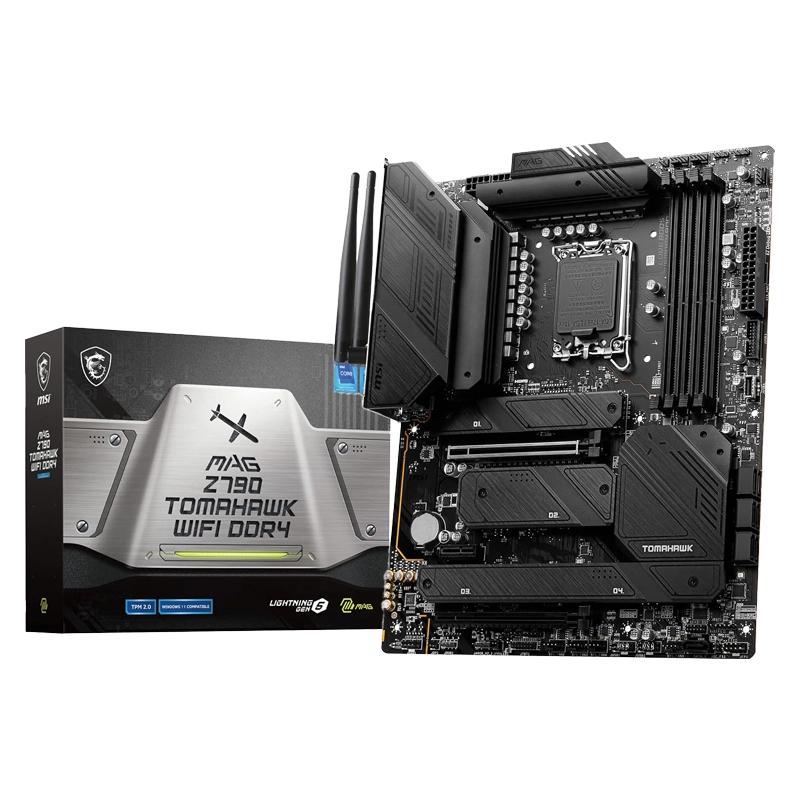

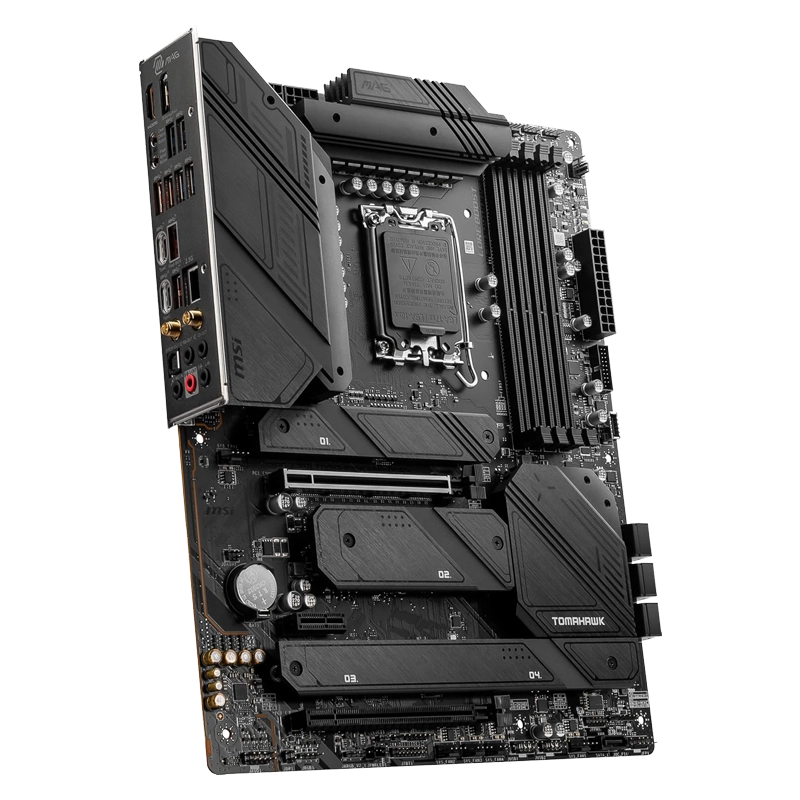

مادربرد ام اس آی مدل - MSI Z790 TOMAHAWK WIFI DDR4

MAG Z790 TOMAHAWK WIFI DDR4

Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors

Support 5333/ 5200/ 5066/ 5000/ 4800/ 4600/ 4533/ 4400/ 4266/ 4000/ 3866/ 3733/ 3600/ 3466/ 3333(O.C.)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133(By JEDCE & POR)
Max. overclocking frequency:
1DPC 1R Maxspeed up to 5333+ MHz
1DPC 2R Maxspeed up to 4800+ MHz
2DPC 1R Maxspeed up to 4400+ MHz
2DPC 2R Maxspeed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile

1xHDMI™
Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz
1xDisplayPort
Support DP 1.4, maximum resolution of 8K 60Hz

2xPCI-Ex16 slot
Supportsx16/x4
1xPCI-Ex1 slot
PCI_E1 Gen PCIe 5.0 supports up tox16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up tox1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up tox4 (From Chipset)

Realtek® ALC4080 Codec
7.1-Channel USB High Performance Audio
Supports S/PDIF output
Supports up to 32-Bit/384 kHz playback on front panel

4xM.2
M.2_1 Source (From CPU) supports up to PCIe 4.0x4 , supports 22110/2280/2260 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0x4 / SATA mode, supports 2280/2260/2242 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0x4 , supports 2280/2260/2242 devices
7xSATA 6G
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices*
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
SATA_A1_A2 do not support RAID function.

10 عدد

4xUSB 10Gbps Type A (Rear)
1xUSB 10Gbps Type C (Rear)
1xUSB 20Gbps Type C (Rear)
4xUSB 5Gbps Type A (Rear)

11 عدد

2xUSB 5Gbps Type A (Front)
4xUSB 2.0 (Front)
4xUSB 2.0 ports (Front)
1xUSB 10Gbps Type C (Front)

Intel® 2.5Gbps LAN

1xPower Connector(ATX_PWR)
2xPower Connector(CPU_PWR)
1xCPU Fan
1xPump Fan
6xSystem Fan
2xFront Panel (JFP)
1xChassis Intrusion (JCI)
1xFront Audio (JAUD)
1xTuning Controller connector(JDASH)
3xAddressable V2 RGB LED connector (JARGB_V2)
1xRGB LED connector(JRGB)
1xTPM pin header(Support TPM 2.0)

4xUSB 2.0 ports
2xUSB 5Gbps Type A ports
1xUSB 10Gbps Type C ports

Intel® Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.3, FIPS, FISMA
Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.

LED FEATURE 4xEZ Debug LED

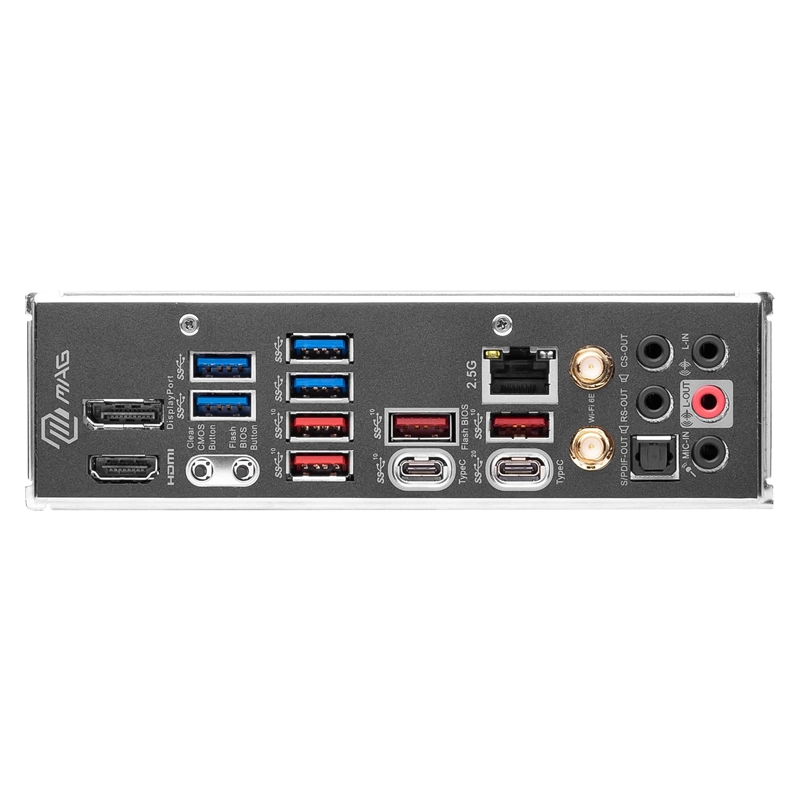

BACK PANEL PORTS
DisplayPort 1.4
USB 3.2 Gen 1 5Gbps Type-A
USB 3.2 Gen 2 10Gbps Type-A
2.5G LAN Port,
HD Audio Connectors
HDMI™ 2.1 Port
Clear CMOS Button
Flash BIOS Button
USB 3.2 Gen 2 10Gbps Type-C
USB 3.2 Gen 2x2 20Gbps Type-C
Wi-Fi / Bluetooth Antenna
Optical S/PDIF OUT

Support for Windows® 11 64-bit, Windows® 10 64-bit
