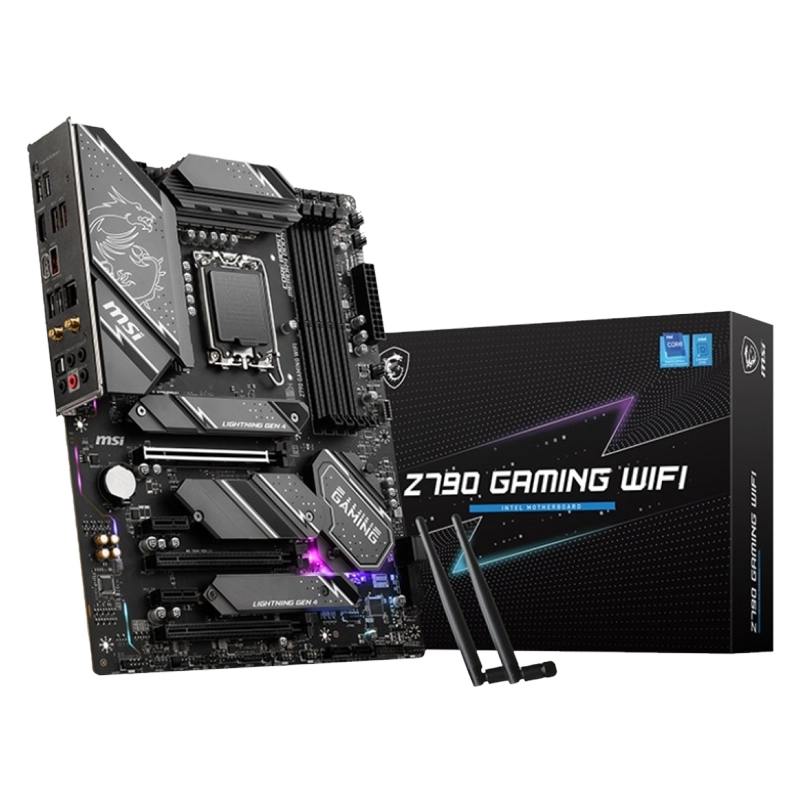

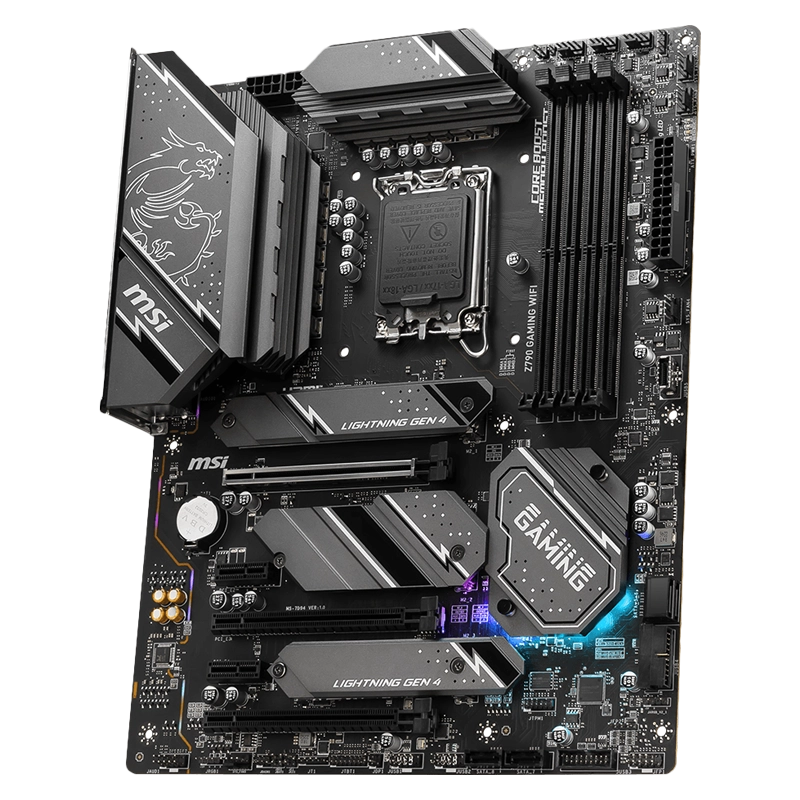

مادربرد ام اس آی مدل - MSI DDR5 MAG Z790 GAMING WIFI

Z790 GAMING WIFI

INTEL Z790

Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
LGA 1700

4x DDR5, Maximum Memory Capacity 256GB
Memory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7200+ MHz
• 1DPC 2R Max speed up to 6400+ MHz
• 2DPC 1R Max speed up to 6000+ MHz
• 2DPC 2R Max speed up to 5600+ MHz

Supports Intel® XMP 3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory

1xHDMI™
Support HDMITM 1.4 with HDR, maximum resolution of 4K 30Hz

3xPCI-E x16 slot
2xPCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E5 Gen PCIe 4.0 supports up to x4 (From Chipset)

Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output

3xM.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4xSATA 6G
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices

8 عدد

4xUSB 5Gbps Type A (Rear)
3xUSB 10Gbps Type A (Rear)
1xUSB 10Gbps Type C (Rear)

9 عدد

4xUSB 5Gbps Type A (Front)
1xUSB 10Gbps Type C (Front)
4xUSB 2.0 (Front)

Realtek® RTL8125BG 2.5Gbps LAN

Intel® Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.3, FIPS, FISMA

1xPower Connector(ATX_PWR)
2xPower Connector(CPU_PWR)
1xCPU Fan
1xPump Fan
5xSystem Fan
2xFront Panel (JFP)
1xChassis Intrusion (JCI)
1xFront Audio (JAUD)
1xTBT connector (JTBT, supports RTD3)
1xTuning Controller connector(JDASH)
2xAddressable V2 RGB LED connector (JARGB_V2)
1xRGB LED connector(JRGB)
1xTPM pin header(Support TPM 2.0)
4xUSB 2.0 ports
4xUSB 5Gbps Type A ports
1xUSB 10Gbps Type C ports
LED FEATURE 4xEZ Debug LED

USB 3.2 Gen 1 5Gbps Type-A
USB 3.2 Gen 2 10Gbps Type-A
USB 3.2 Gen 2 10Gbps Type-A
2.5G LAN Port
Wi-Fi / Bluetooth Antenna
HD Audio Connectors
Flash BIOS Button
HDMI™ 1.4 Port
USB 3.2 Gen 2 10Gbps Type-C
USB 3.2 Gen 1 5Gbps Type-A
Optical S/PDIF OUT

Support for Windows® 11 64-bit, Windows® 10 64-bit
