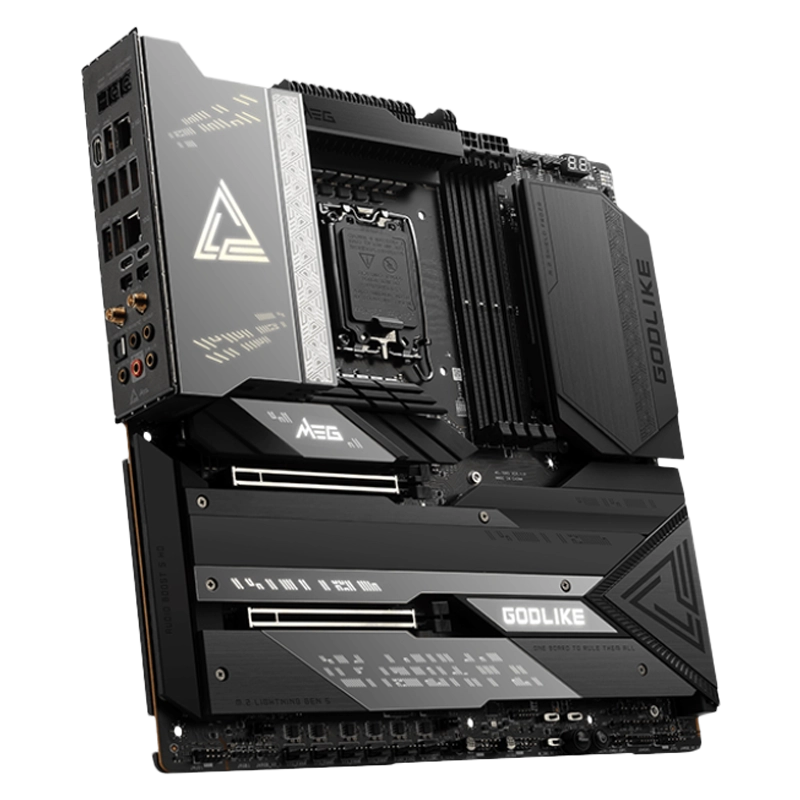

مادربرد ام اس آی مدل - MSI DDR5 MEG Z790 GODLIKE

MEG Z790 GODLIKE

INTEL Z790

Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
LGA 1700

4xDDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
1DPC 1R Maxspeed up to 7800+ MHz
1DPC 2R Maxspeed up to 6600+ MHz
2DPC 1R Maxspeed up to 6400+ MHz
2DPC 2R Maxspeed up to 5600+ MHz
Supports Intel®xMP3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory

2xPCI-Ex16 slot
PCI_E1 Gen PCIe 5.0 supports up tox16 (From CPU)
PCI_E2 Gen PCIe 5.0 supports up tox8 (From CPU)

Realtek® ALC4082 Codec + ESS ES9280AQ Combo DAC/HPA
7.1-Channel USB High Performance Audio
Supports S/PDIF output
Supports up to 32-Bit/384 kHz playback on front panel

7xM.2
M.2_1 Source (From CPU) supports up to PCIe 4.0x4 , supports 22110/2280/2260 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0x4 / SATA mode, supports 2280/2260 devices
M.2_4 Source (From CPU) supports up to PCIe 5.0x4 , supports 22110/2280 devices
M.2_5 Source (From Chipset) supports up to PCIe 3.0x4 / SATA mode, supports 2280/2260 devices
M.2_6 Source (From Chipset) supports up to PCIe 4.0x4 , supports 2280/2260 devices
M.2_7 Source (From Chipset) supports up to PCIe 4.0x4 , supports 2280/2260 devices
6xSATA 6G
Multi-GPU AMD MULTI-GPU Support
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices

SATA_A1_A2 do not support RAID function.
Onboard Thunderbolt Thunderbolt chip JHL8540

7 عدد

7xUSB 10Gbps Type A (Rear)
1xUSB 10Gbps Type C (Rear)

10 عدد

2xUSB 20Gbps Type C (Front)
4xUSB 2.0 (Front)
4xUSB 5Gbps Type A (Front)

2xUSB 20Gbps Type C (Front)
4xUSB 2.0 (Front)
4xUSB 5Gbps Type A (Front)

1xPower Connector(ATX_PWR)
2xPower Connector(CPU_PWR)
1xFront Type-C Quick Charge Connector(PD_PWR1)
1xCPU Fan
2xPump Fan
7xSystem Fan
2xFront Panel (JFP)
1xChassis Intrusion (JCI)
1xWater Flow connector
1xSlow Mode Booting Jumper(JSLOW)
1xFront Audio (JAUD)
2xThermal Sensor connectors(T_SEN)
1xTuning Controller connector(JDASH)
3xAddressable V2 RGB LED connector (JARGB_V2)
1xRGB LED connector(JRGB)
1xTPM pin header(Support TPM 2.0)
V-check point

4xUSB 2.0 ports
4xUSB 5Gbps Type A ports
2xUSB 20Gbps Type C ports

Intel® Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.3, FIPS, FISMA

Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.

LED FEATURE 1xEZ LED Control switch
4xEZ Debug LED
1x2-Digit Debug Code LED

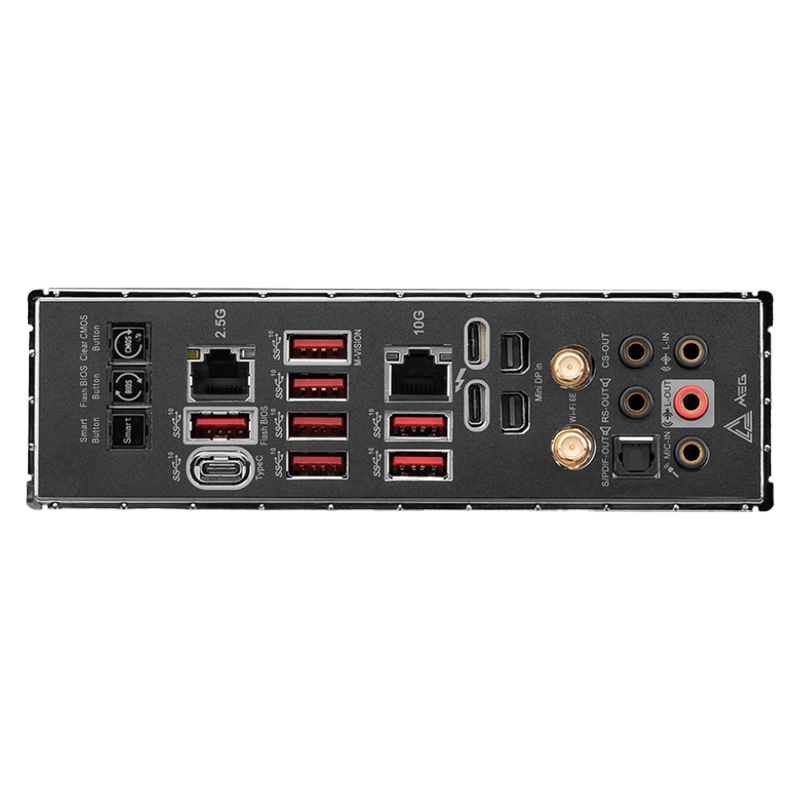

BACK PANEL PORTS
Clear CMOS Button
Flash BIOS Button
2.5G LAN
10G Super LAN
Thunderbolt 4 40Gbps (Type-C)
Wi-Fi / Bluetooth
Audio Connectors
Smart Button
USB 3.2 Gen 2 10Gbps (Type-C)
USB 3.2 Gen 2 10Gbps (Type-A)
Mini DisplayPort Input (for Thunderbolt passthrough)
Optical S/PDIF-Out

Support for Windows® 11 64-bit, Windows® 10 64-bit
