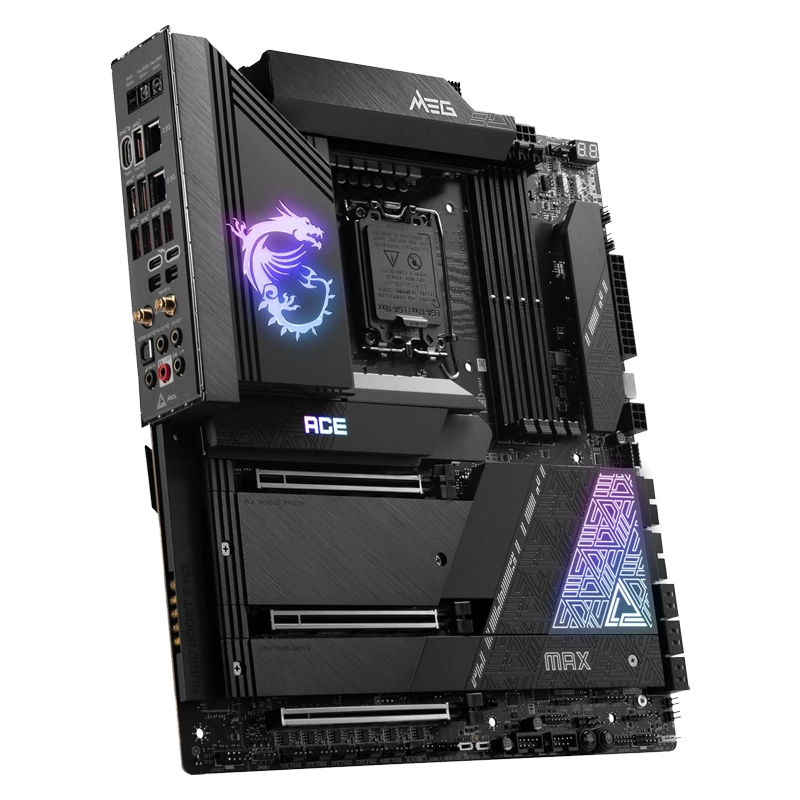

مادربرد ام اس آی مدل - MSI DDR5 MEG z790 ace max

meg z790 ace max

INTEL Z790

Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
LGA 1700

4xDDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Maxspeed up to 7800+ MHz
• 1DPC 2R Maxspeed up to 6800+ MHz
• 2DPC 1R Maxspeed up to 6400+ MHz
• 2DPC 2R Maxspeed up to 6000+ MHz
Supports Intel®xMP3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory

1xType-C DisplayPort
Supports a maximum resolution of 4K 60Hz

3xPCI-Ex16 slot
PCI_E1 Gen PCIe 5.0 supports up tox16 (From CPU)
PCI_E2 Gen PCIe 5.0 supports up tox8 (From CPU)
PCI_E3 Gen PCIe 4.0 supports up tox4 (From Chipset)

Realtek® ALC4082 Codec + ESS ES9280AQ Combo DAC/HPA
7.1-Channel USB High Performance Audio
Supports S/PDIF output
Supports up to 32-Bit/384 kHz playback on front panel

5xM.2
M.2_1 Source (From CPU) supports up to PCIe 4.0x4 , supports 22110/2280/2260 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0x4 / SATA mode, supports 2280/2260 devices
M.2_4 Source (From CPU) supports up to PCIe 5.0x4 , supports 2280 devices
M.2_5 Source (From Chipset) supports up to PCIe 4.0x4 / SATA mode, supports 22110/2280/2260 devices
6xSATA 6G

Multi-GPU AMD MULTI-GPU Support
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices

*SATA_A1_A2 do not support RAID function.
Onboard Thunderbolt Thunderbolt chip JHL8540
2xThunderbolt4 (USB-C) ports Q’ty
Supports up to 40Gbps transfer rate with Thunderbolt devices
Supports up to 20Gbps transfer rate with USB4 devices
Supports up to 10Gbps transfer rate with USB 3.2 devices
Supports up to 5V/3A,15W power charging

8 عدد

7xUSB 10Gbps Type A (Rear)
1xUSB 10Gbps Type C (Rear)

10 عدد

4xUSB 2.0 (Front)
4xUSB 5Gbps Type A (Front)
2xUSB 20Gbps Type C (Front)

2xIntel® 2.5Gbps LAN

1xPower Connector(ATX_PWR)
2xPower Connector(CPU_PWR)
1xFront Type-C Quick Charge Connector(PD_PWR1)
1xCPU Fan
2xPump Fan
5xSystem Fan
1xARGB+FAN Header (JAF_1)
2xFront Panel (JFP)
1xChassis Intrusion (JCI)
1xWater Flow connector
1xSlow Mode Booting Jumper(JSLOW)
1xFront Audio (JAUD)
2xThermal Sensor connectors(T_SEN)
1xTuning Controller connector(JDASH)
3xAddressable V2 RGB LED connector (JARGB_V2)
1xRGB LED connector(JRGB)
1xTPM pin header(Support TPM 2.0)
V-check point

4xUSB 2.0 ports
2xUSB 5Gbps Type A ports
2xUSB 20Gbps Type C ports

Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

Supports Bluetooth® 5.4**, MLO, 4KQAM

LED FEATURE 1xEZ LED Control switch
4xEZ Debug LED
1x2-Digit Debug Code LED
BACK PANEL PORTS
Clear CMOS Button
Flash BIOS Button
2.5G LAN
2.5G LAN
Thunderbolt 4 40Gbps (Type-C)
Wi-Fi / Bluetooth
Audio Connectors
Smart Button
USB 3.2 Gen 2 10Gbps (Type-C Display port)
USB 3.2 Gen 2 10Gbps (Type-A)
Mini DisplayPort Input (for Thunderbolt passthrough)
Optical S/PDIF-Out

Support for Windows® 11 64-bit
