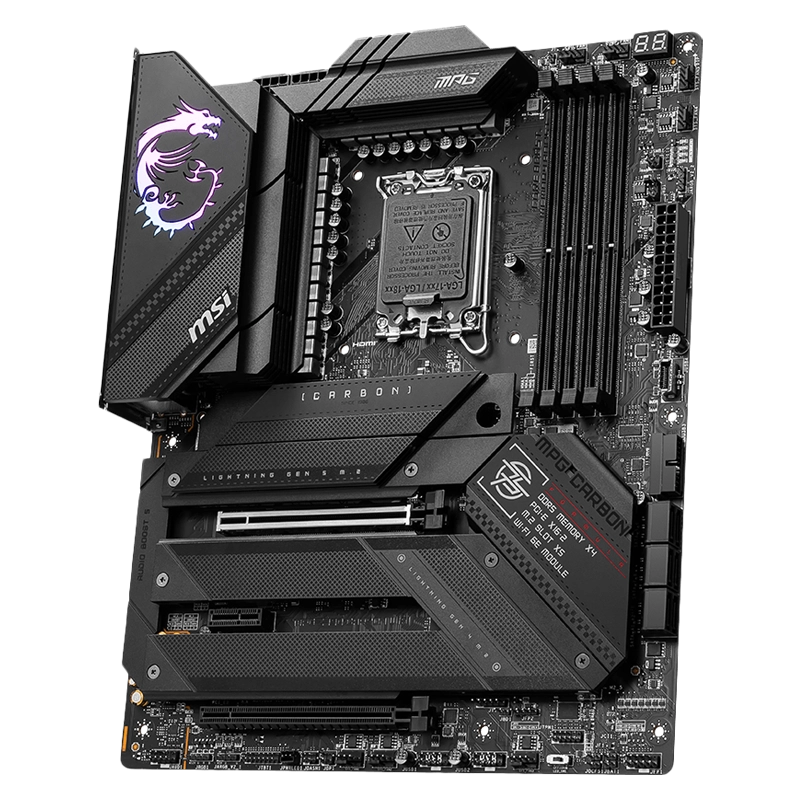

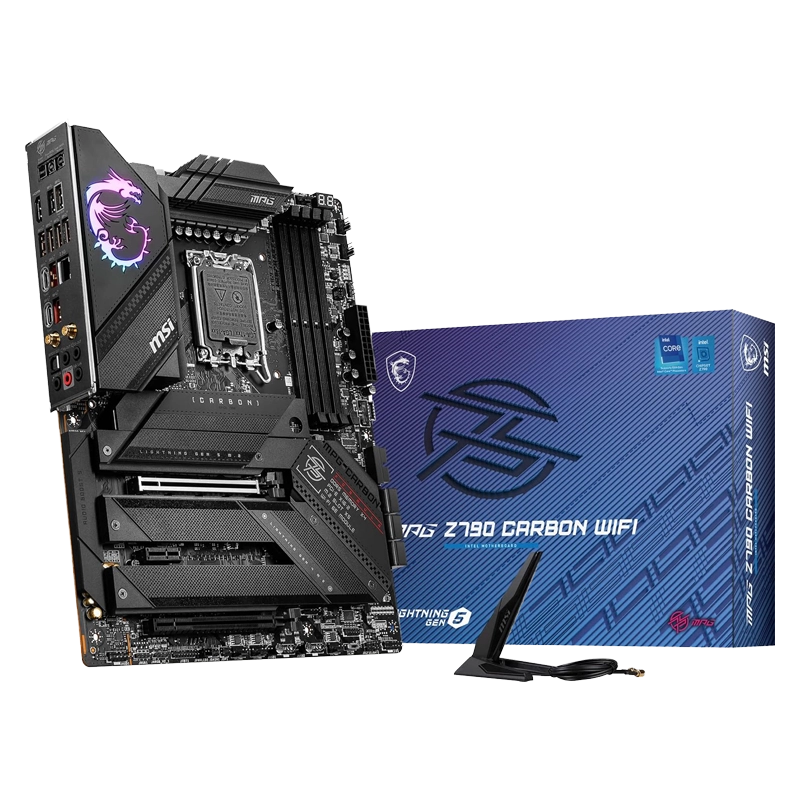

مادربرد ام اس آی مدل - MSI DDR5 MPG Z790 CARBON WIFI

MPG Z790 CARBON WIFI

INTEL Z790

Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
LGA 1700

4xDDR5, Maximum Memory Capacity 256GB
Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Maxspeed up to 7600+ MHz
• 1DPC 2R Maxspeed up to 6600+ MHz
• 2DPC 1R Maxspeed up to 6400+ MHz
• 2DPC 2R Maxspeed up to 5600+ MHz

Supports Intel®xMP3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory
Onboard Graphics 1xHDMI™
Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz

2xPCI-Ex16 slot
1xPCI-Ex1 slot
PCI_E1 Gen PCIe 5.0 supports up tox16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up tox1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up tox4 (From Chipset)

Realtek® ALC4080 Codec
7.1-Channel USB High Performance Audio
Supports up to 32-Bit/384 kHz playback on front panel

5xM.2
M.2_1 Source (From CPU) supports up to PCIe 4.0x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 5.0x4 , supports 22110/2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0x4 , supports 2280/2260 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0x4 , supports 2280/2260 devices
M.2_5 Source (From Chipset) supports up to PCIe 4.0x4 / SATA mode, supports 2280/2260 devices
6xSATA 6G
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices

10 عدد

2xUSB 5Gbps Type A (Rear)
6xUSB 10Gbps Type A (Rear)
1xUSB 10Gbps Type C (Rear)
1xUSB 20Gbps Type C (Rear)

7 عدد

4xUSB 2.0 (Front)
2xUSB 5Gbps Type A (Front)
1xUSB 20Gbps Type C (Front)

Intel® 2.5Gbps LAN

1xPower Connector(ATX_PWR)
2xPower Connector(CPU_PWR)
1xCPU Fan
1xPump Fan
5xSystem Fan
2xFront Panel (JFP)
1xChassis Intrusion (JCI)
1xFront Audio (JAUD)
1xTuning Controller connector(JDASH)
2xAddressable V2 RGB LED connector (JARGB_V2)
1xRGB LED connector(JRGB)
1xTPM pin header(Support TPM 2.0)

4xUSB 2.0 ports
2xUSB 5Gbps Type A ports
1xUSB 20Gbps Type C ports

Intel® Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.3, FIPS, FISMA

LED FEATURE 1xEZ LED Control switch
1x2-Digit Debug Code LED
4xEZ Debug LED
BACK PANEL PORTS
Clear CMOS / Flash
USB 5 Gbps (Type-A)
2.5G LAN
USB 10Gbps (Type-A)
Audio Connectors
Smart Button
HDMI™
USB 10Gbps (Type-A)
USB 10Gbps (Type-C)
USB 20Gbps (Type-C)
Wi-Fi / Bluetooth
Optical S/PDIF Out
